ACO Drain® Monoblock

  • Channel body without invert slope, 1000 mm
  • Inspection element, 500 mm
  • Sump unit, 500 mm
Product description

ACO Monoblock is a drainage system in a monolithic design: channel and cover are made of polymer concrete in one casting. The result is an extremely stable unit without loose parts, there is also no need for bonded joints. The unique monocast construction is a guarantee for maximum safety and stability in large-scale drainage – an ideal alternative to conventional solutions. Due to its monolithic design, the Monoblock always remains stable even under extreme loads.

Multiline – drainage channels made of polymer concrete

  • ACO Multiline V 100
  • ACO Multiline V 150
  • ACO Multiline V 200
  • ACO Multiline V 300
  • ACO Multiline V 400
  • ACO Multiline V 500
Product description

The basis of the ACO Drain® Multiline system is the idea of creating benefits for everyone: architects, designers, distributors and contractors. Five load classes, six clear channel widths, three types of materials used for edge reinforcement – all this adds up to an innovative concept that gives full design freedom.

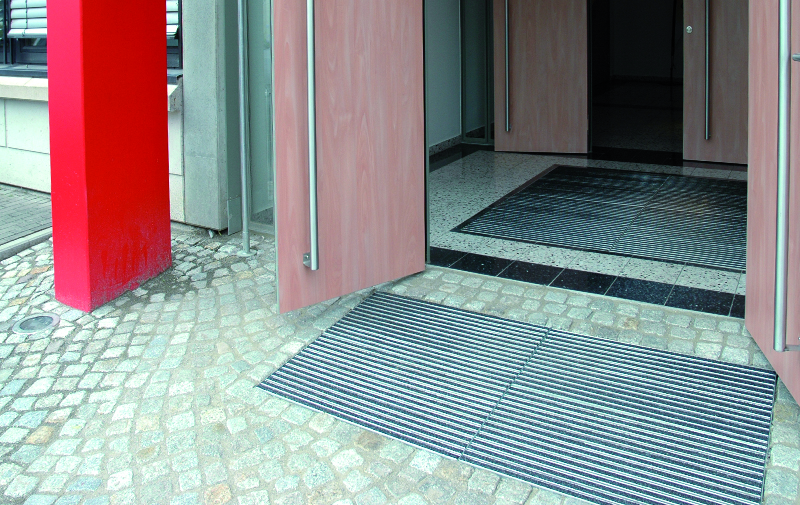

ACO Vario® Indoor Shoe Cleaner

  • length [mm]: 600-750
  • width [mm]: 400-500
  • height [mm]: 10
  • color: gray, black
Product description

The two-part construction consists of a polymer concrete body, ensuring the highest durability, which is also frost-resistant and non-absorbent, along with a rubber-filled mat. Effectively collects dirt from footwear. Ease of use is facilitated by the possibility of installing a drain in the bottom with a size of DN 110

ACO Q-max drainage

Product description

ACO Qmax is the combination of drainage and retention. There are no limits related to the application field. Everything is possible with ACO Qmax, from utilizing it as a slotted channel in pedestrian areas to the drainage of large surface areas with heavy traffic.

ACO Vario® Shoe Cleaner with water drainage and rubber-filled grate

  • material: polymer concrete
  • length [mm]: 600-1000
  • width [mm]: 400-500
  • height [mm]: 80
Product description

The two-part construction consists of a polymer concrete body, ensuring the highest durability, which is also frost-resistant and non-absorbent, along with a rubber-filled mat. Effectively collects dirt from footwear. Ease of use is facilitated by the possibility of installing a drain in the bottom with a size of DN 110

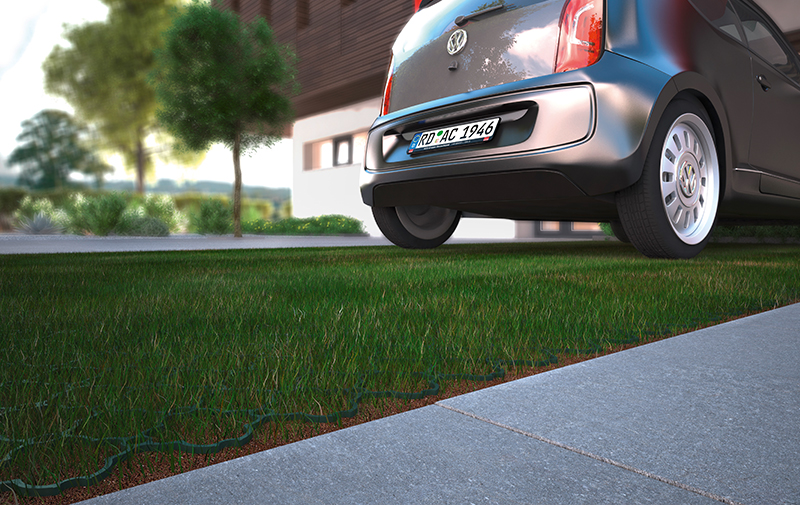

ACO lawn grating.

  • Material: plastic
  • Length [mm]: 586
  • Width [mm]: 386
  • Height [mm]: 38
Product description

Utilizing lawn grid grates on driveways or parking lots enables the use of this space for water absorption. Made of high-density material, these accessories, such as markers, allow for the easy creation of parking spaces.

Sustainable stormwater treatment solution for infiltration, retention and reuse

Product description

a patented stormwater management system constructed from plastic geocellular materials. Designed to address sustainable surface water needs, it provides effective solutions for detention, retention, infiltration, and the potential for water reuse.

Applications:

Airports, distribution yards, highways, industrial estates, landscaping, parking areas, pedestrian precincts, ports and docks, retail developments, SUDS – Sustainable drainage systems.

ACO Stormsed Vortex

  • Wide range of flow rates
  • Designed for 80% TSS removal of 75-micron particles at high treatment flow rates
  • Compact treatment solution with low footprint
  • Patented design
  • Easy maintenance
  • Inner parts are made of high-density polyethylene (HDPE)
  • Possibility of various outlet angles 90°–180° (optional)
Product description

ACO Stormsed Vortex enables sedimentation through hydrodynamic or vortex separation. Designed according to NJDEP specifications, the patented solution can remove up to 80% of pollutants and capture 100% of floatables. The unique design of ACO Stormsed Vortex separates high flows from captured sediment, allowing it to treat a wide range of flow rates from sites of less than 1,000 sqm to over 20,000 sqm depending on the country of specification.

Its small footprint requires less excavation during installation, and variable connection outlet angles are available. Vortex flow allows Stormsed Vortex to operate at high treatment flow rates without the hydraulic shortcutting or sediment remobilisation issues found in other sedimentation technologies, making it perfect for high flow applications!

References

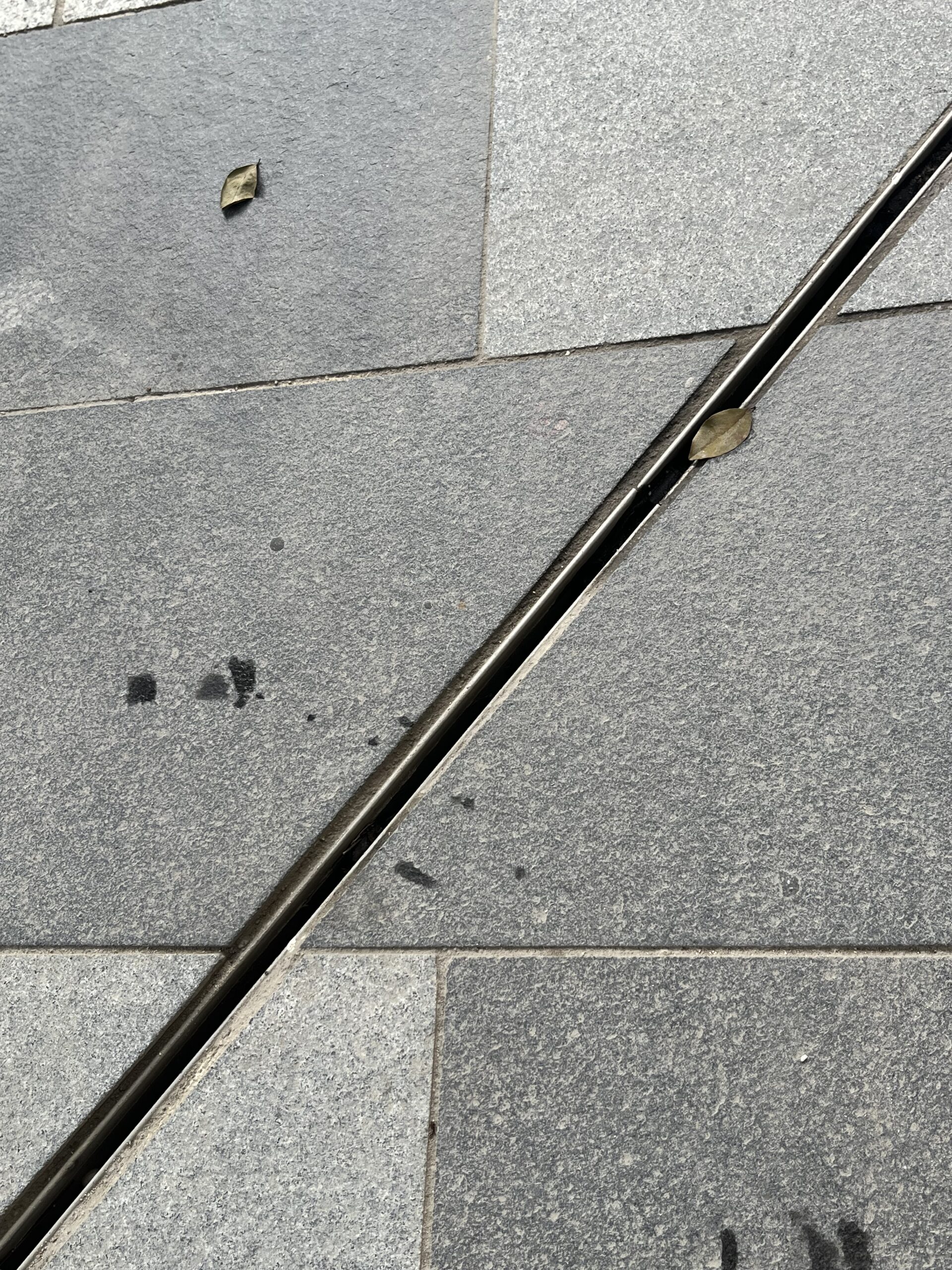

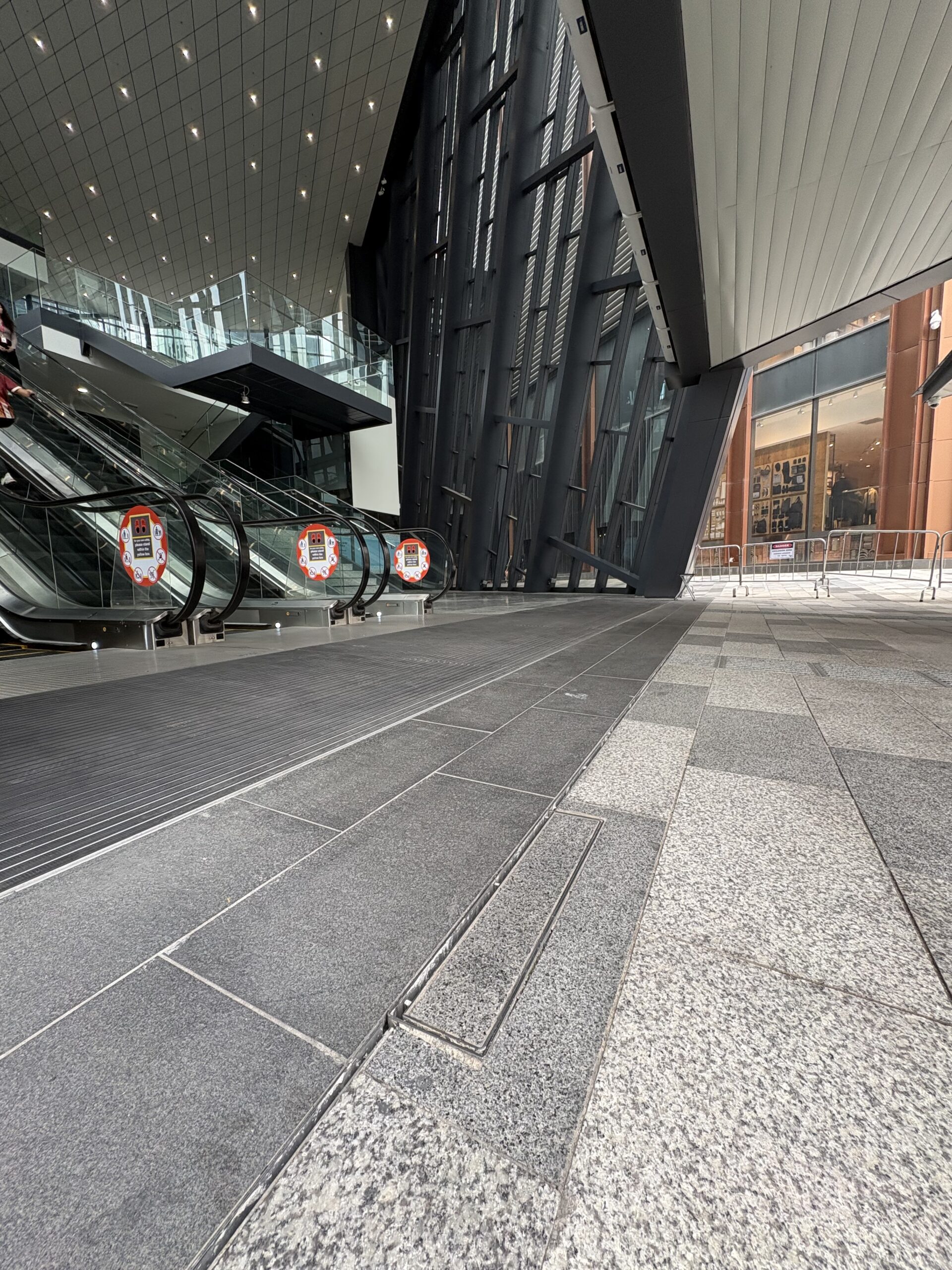

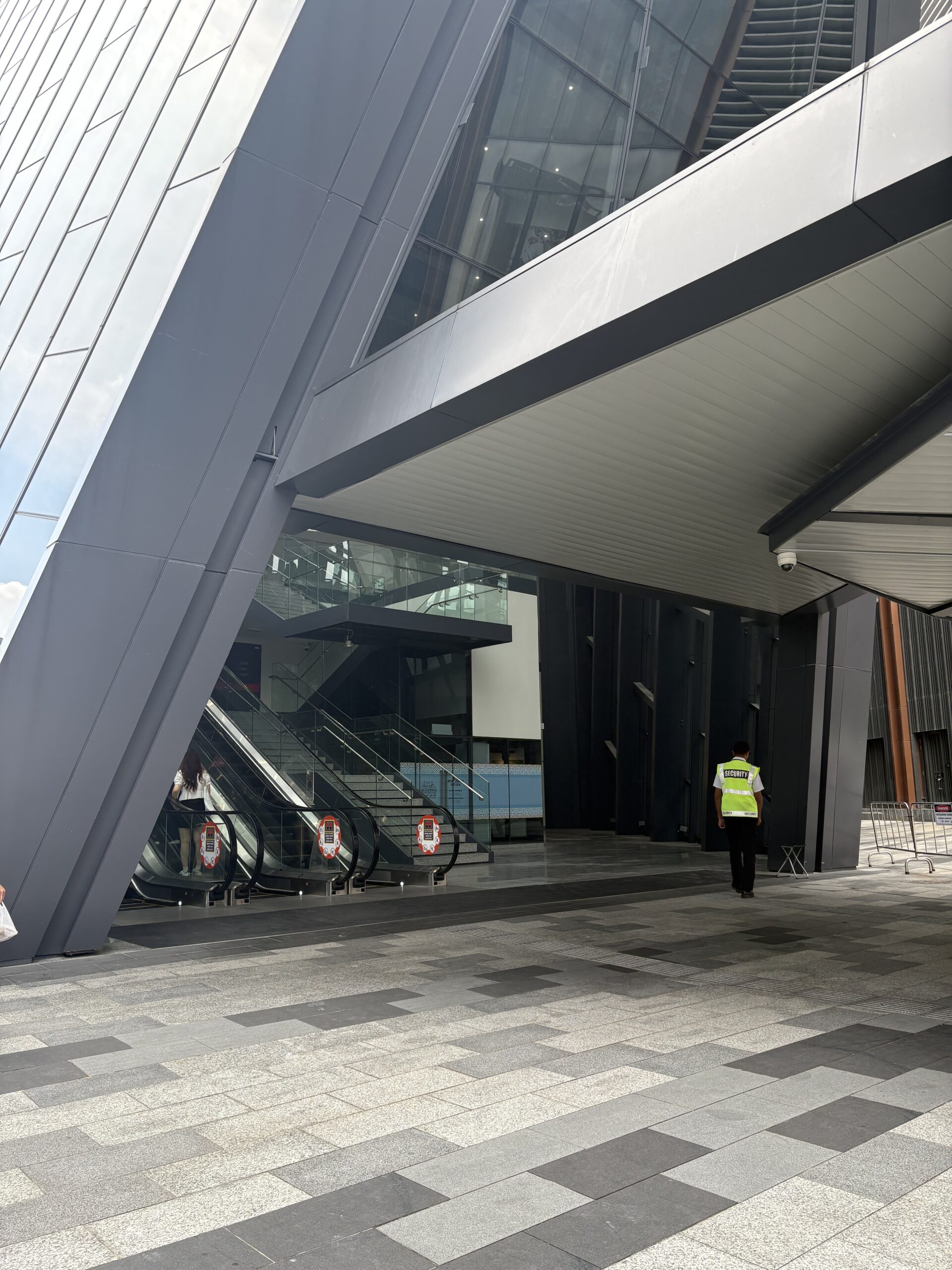

The Exchange TRX Mall, Malaysia

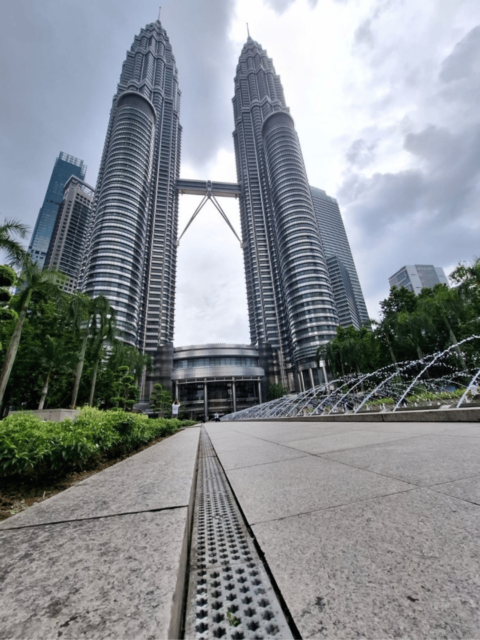

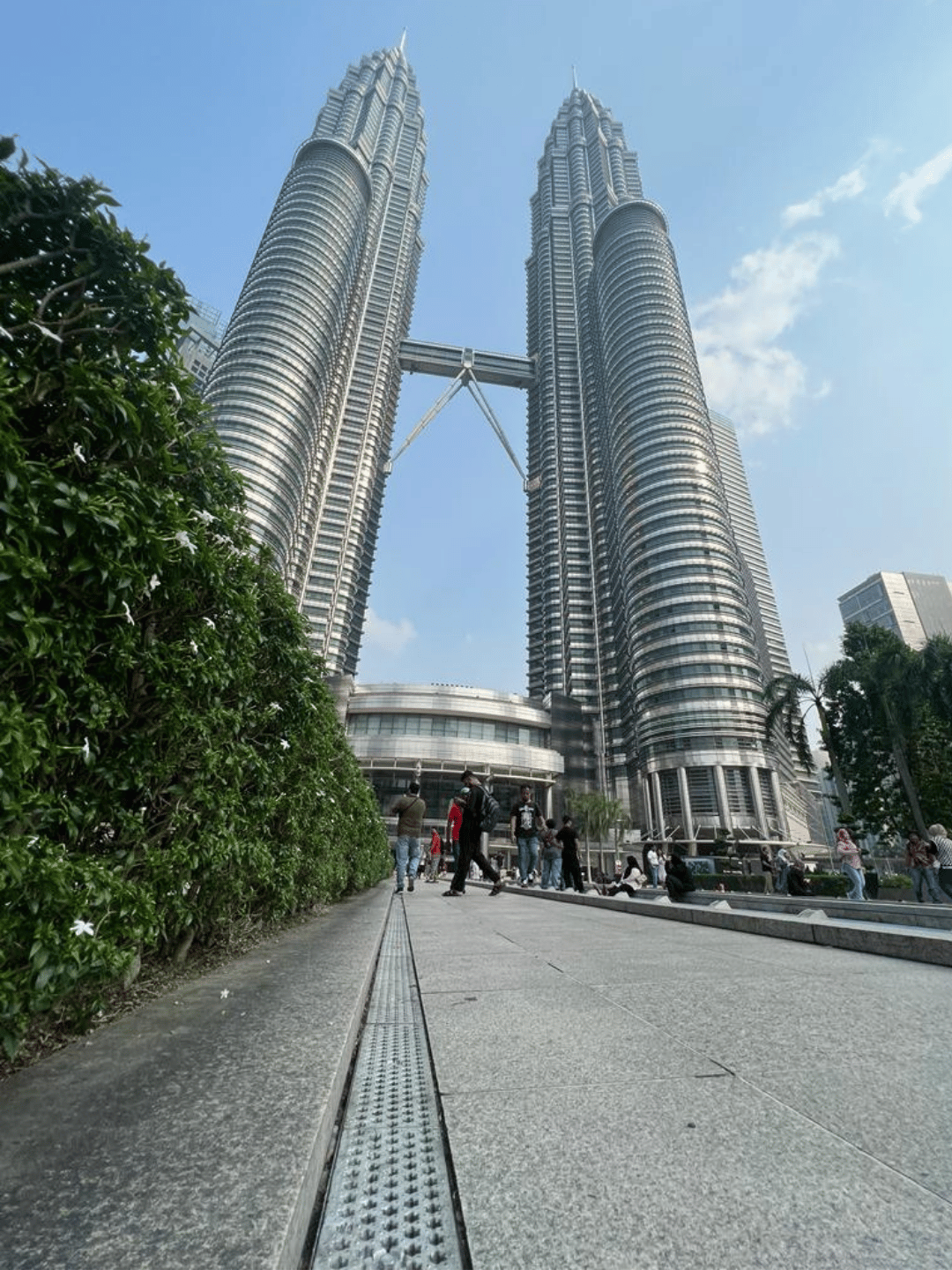

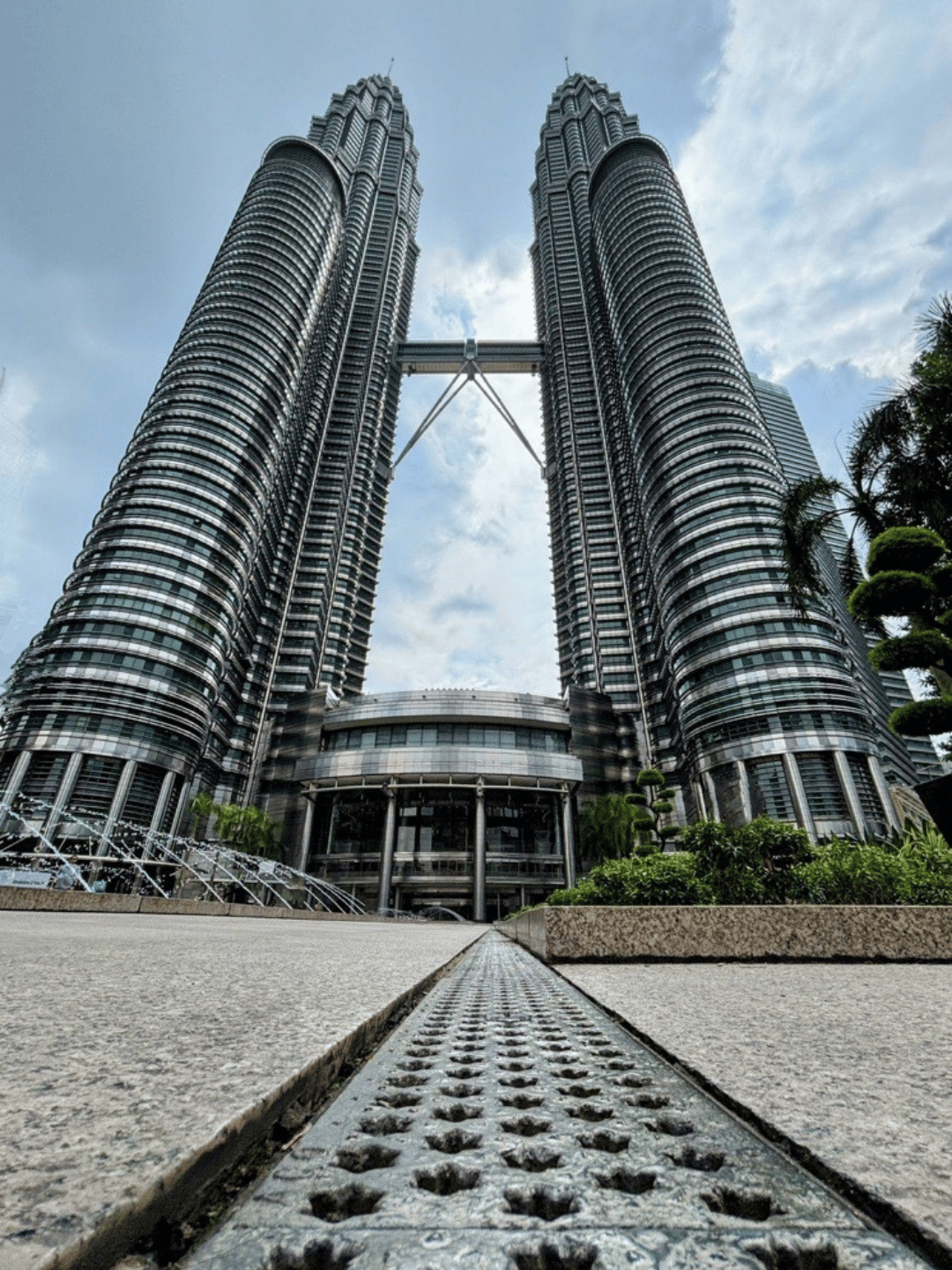

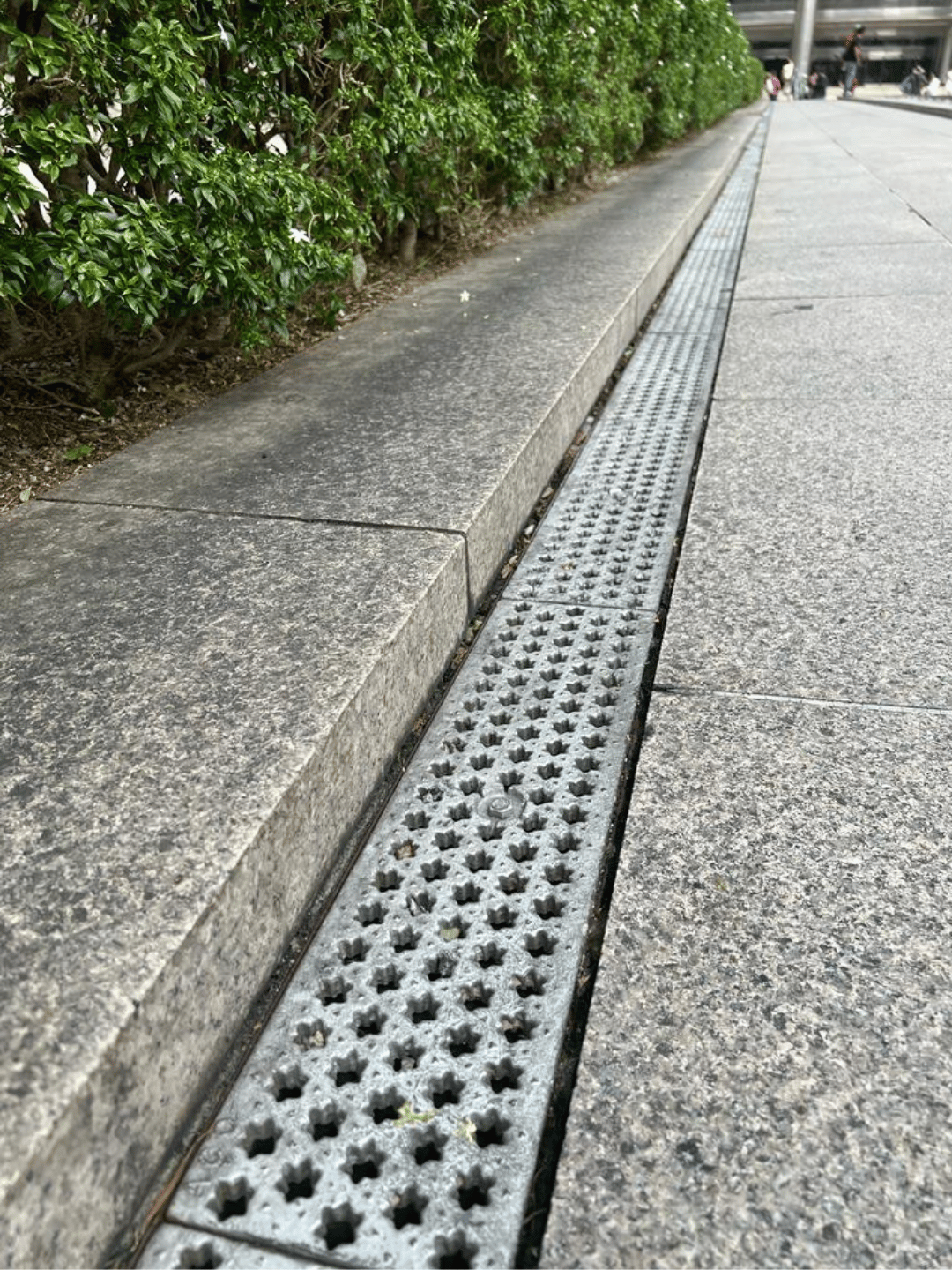

Kuala Lumpur City Center Park, Malaysia

In front of KLCC lies a beautifully designed plaza with aesthetic water features that blend seamlessly with the iconic landmark. To support both surface water management and the water feature system, ACO supplied a comprehensive drainage solution—including standard systems for walkways and custom-designed grates.

These custom grates feature the Islamic star motif, a subtle yet powerful nod to Malaysian cultural identity. This project reflects how thoughtful design and functionality can come together—showcasing national spirit even in the smallest architectural details.

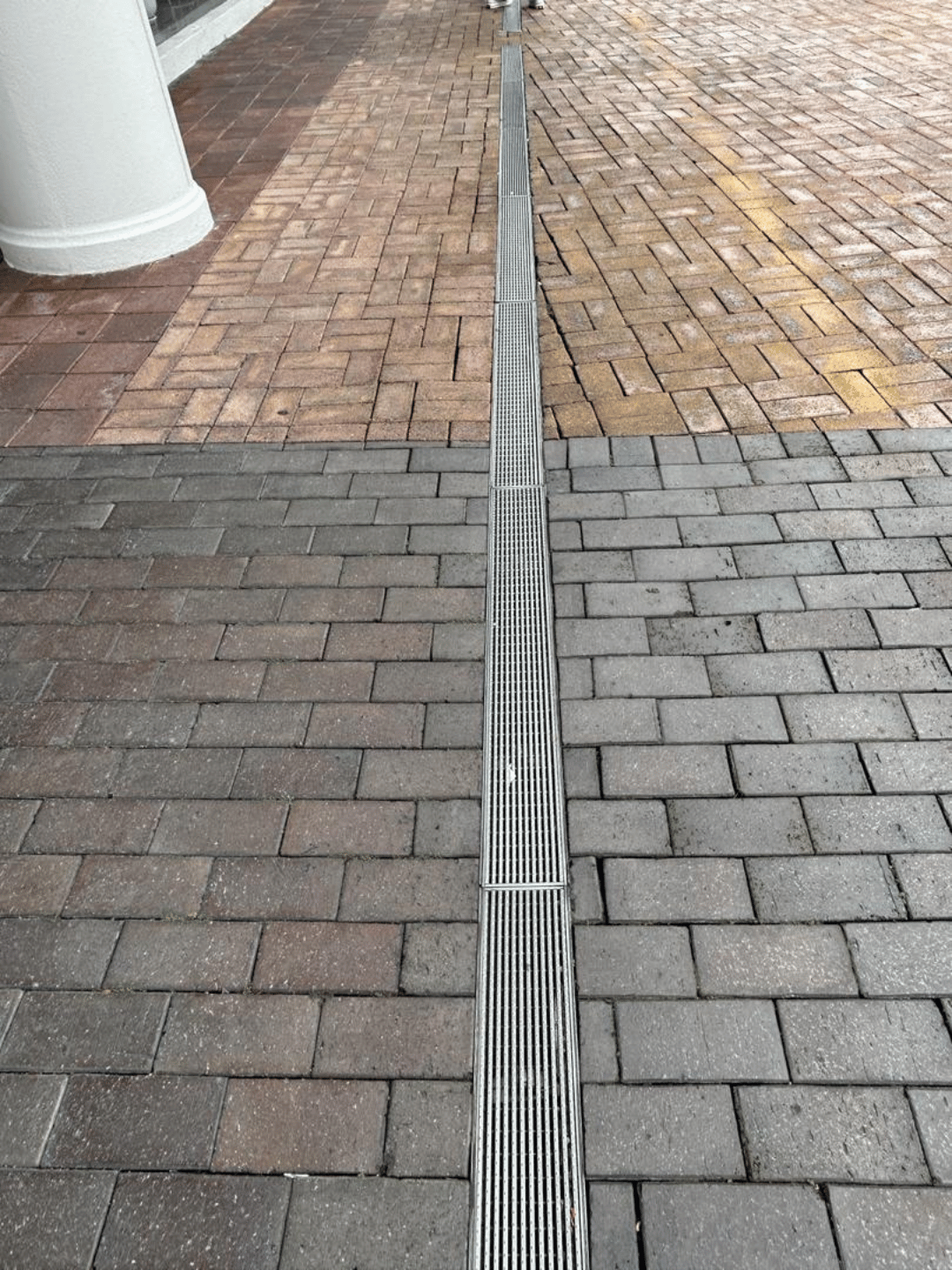

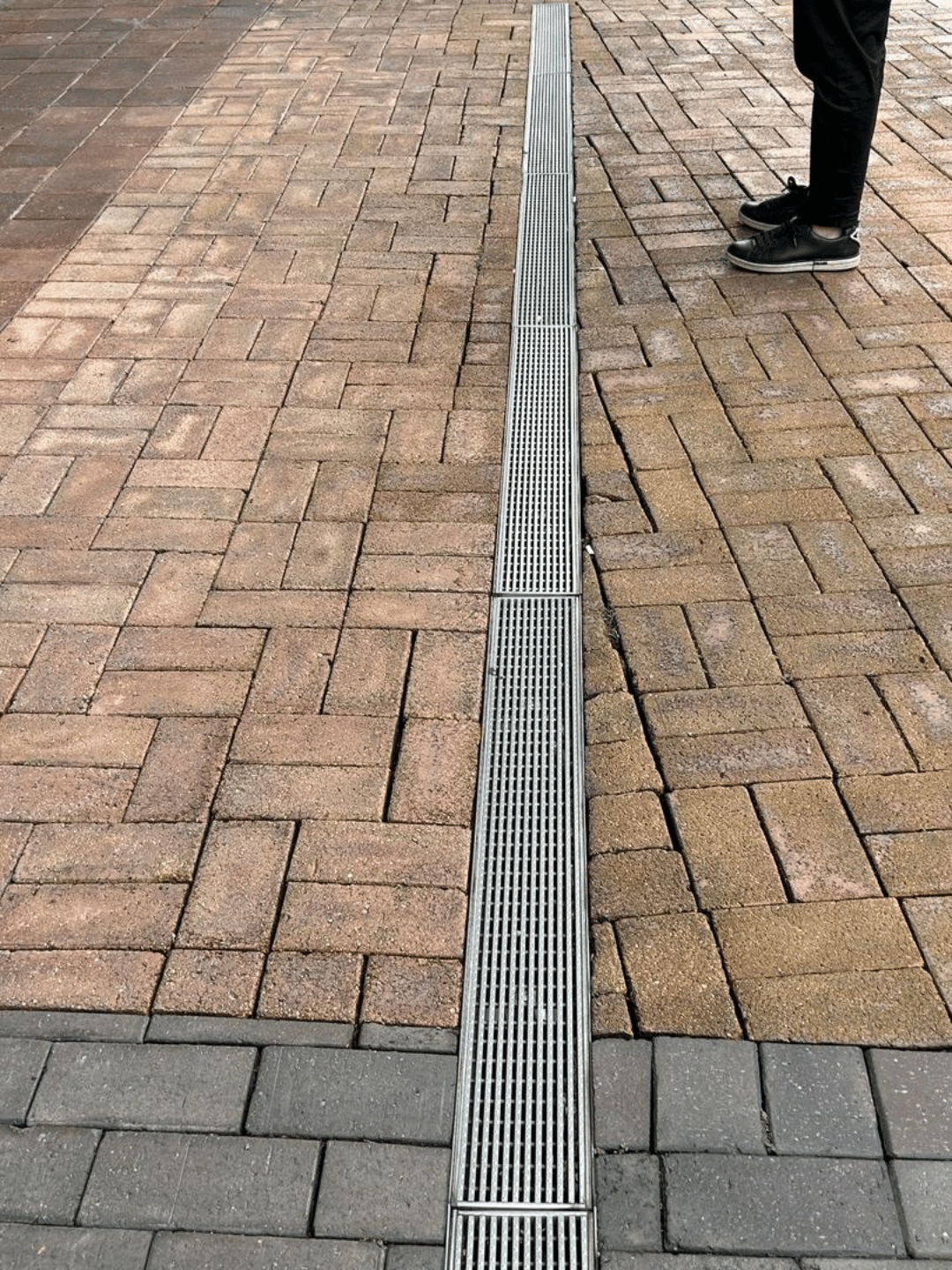

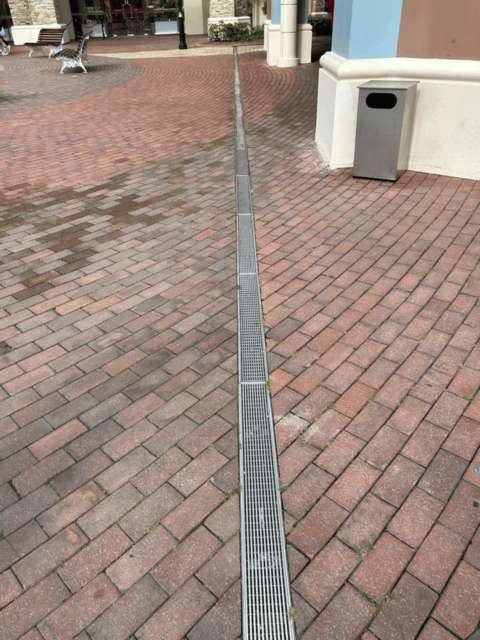

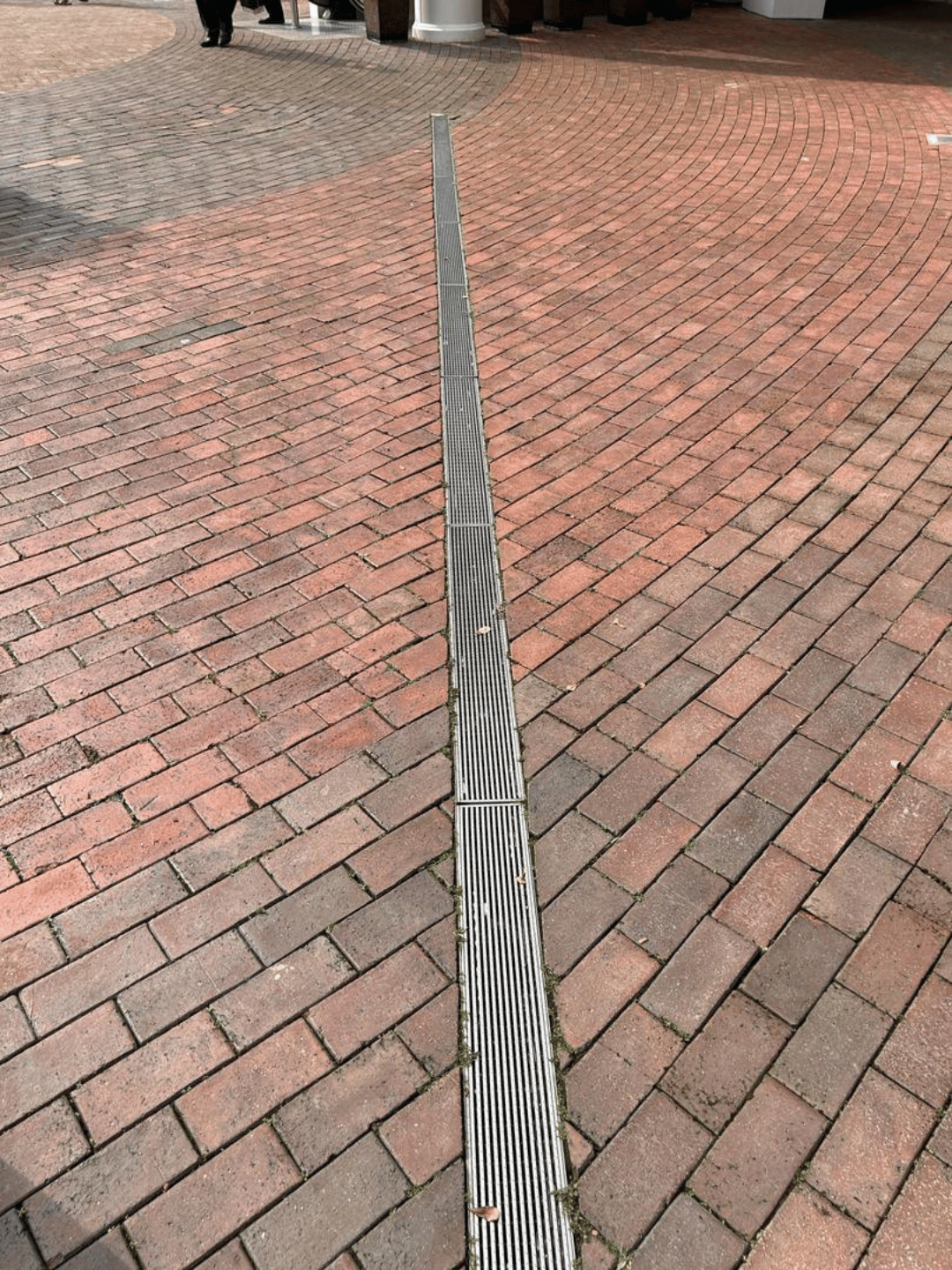

Johor Premium Outlet, Malaysia

Johor Premium Outlets (JPO) is Malaysia’s premier outlet shopping destination, strategically located in Indahpura, Kulai, Johor. Officially opened on December 11, 2011, JPO is a joint venture between Genting Plantations Berhad and Simon Property Group, operated under Genting Simon Sdn Bhd. The center spans 45 acres and offers over 150 designer and brand-name outlet stores, featuring daily savings of 25% to 65% on a wide range of products. Notable brands include BOSS, Bottega Veneta, Christian Louboutin, Jimmy Choo, Nike, and Versace.
