ACO Qmax Neo

  • Modular drainage system for unlimited hydraulic capacity:
  • Modular system for optimized transport and logistics
  • Unlimited hydraulic capacity options
  • Made of polypropylene - resistant to chemicals and corrosion
  • Low weight for easy handling
  • Continuous reinforcement and flow of concrete through the beams
  • Discrete surface slot for all load classes A15 – F900
Product description

ACO Qmax Neo is designed to respond to all challenges of draining large areas, heavy loads and high hydraulic capacity. As an added benefit, the system places a special focus on efficiency. The modular system significantly optimizes site transportation and storage, making it a preferred solution for projects with large catchment areas. In addition to these advantages, ACO Qmax Neo offers a discrete surface slot for all load classes as well as water storage volume.

ACO KerbDrain

  • material: polymer concrete
Product description

ACO KerbDrain® is a one-piece polymer concrete kerb, also serving as a drainage channel. The system allows for flexibility in designing and shaping roads, parking lots, roundabouts, and bus stops. The variety of widths and profiles enables installation of the system in cities, on highways, and even on motorways. Load class D400, in accordance with EN 1433 standard. Additionally, additional elements adapted for pedestrian crossings, wheelchair crossings, and laying in curves are recommended.

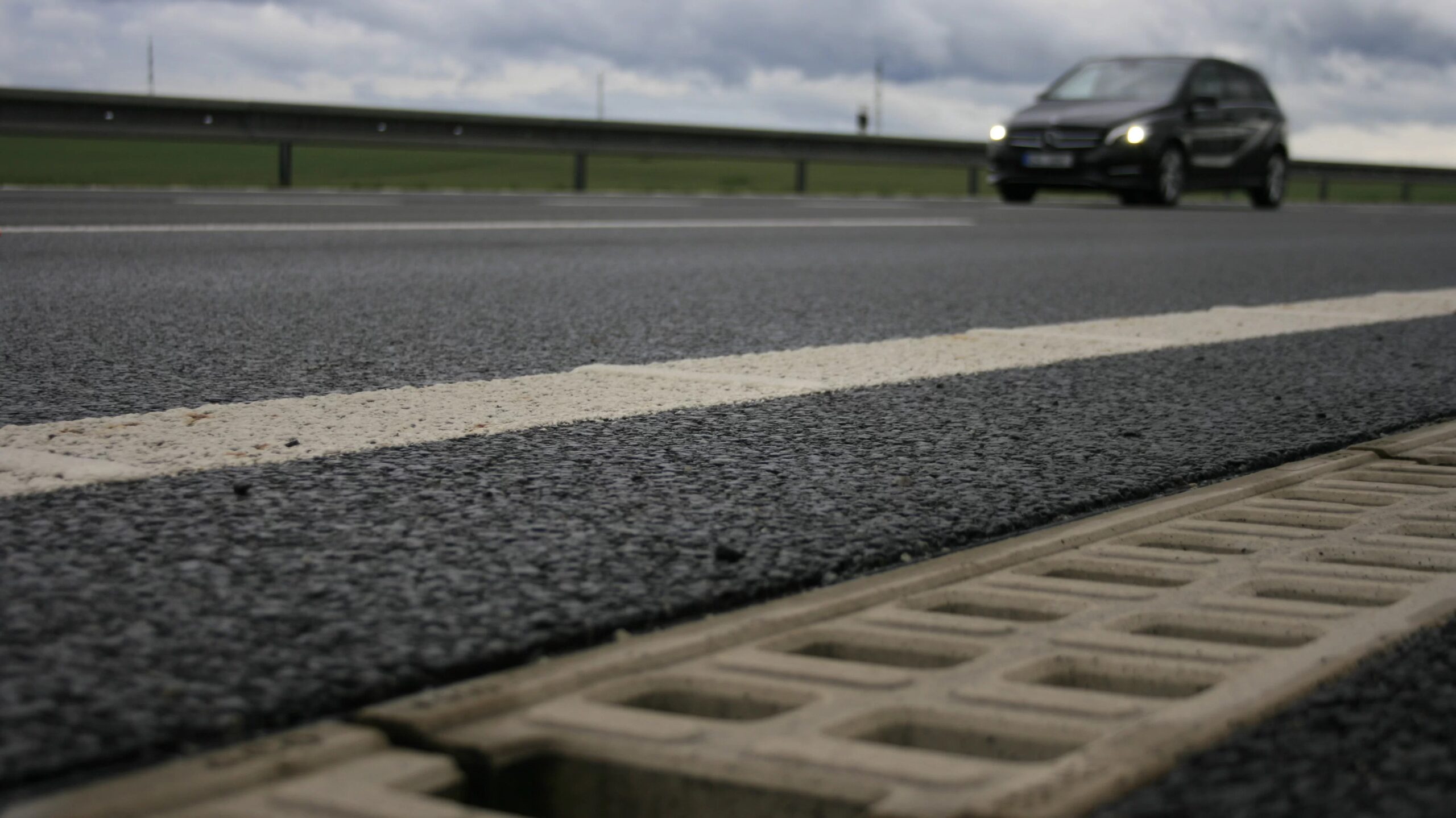

Monolithic drainage ACO Monoblock PD200V

  • material: polymer concrete
Product description

The monolithic drainage system used on roads and in parking lots ensures safety through a non-removable grate. Uncontrolled opening of the channel in the roadway can cause damage to vehicles and pose a risk of accidents. The narrow grate slots are tailored to pedestrian traffic, including various types of footwear (including high heels). The monolithic solution seamlessly integrates with the road surface, available in different colors such as natural or anthracite. Easy cleaning without the need to remove the grates. High load class and easy installation.

Sustainable stormwater treatment solution for infiltration, retention and reuse

Product description

a patented stormwater management system constructed from plastic geocellular materials. Designed to address sustainable surface water needs, it provides effective solutions for detention, retention, infiltration, and the potential for water reuse.

Applications:

Airports, distribution yards, highways, industrial estates, landscaping, parking areas, pedestrian precincts, ports and docks, retail developments, SUDS – Sustainable drainage systems.

ACO Light Oil Separator | Oleopator GRP

Product description

Light liquid separators, also known as oils separators, ​ are essential devices designed to remove oils and hydrocarbons from water prior to discharge.​

ACO light liquid separators are designed and constructed in compliance with EN 858 standards and undergo rigorous LGA institute laboratory testing. This ensures maximum safety and efficiency during their operations.​ Lighter oils rise to the surface while solids settle, allowing clean water to exit. They find use in industrial, parking, ​and refueling facilities, ensuring compliance with environmental regulations.​ Regular maintenance and disposal of collected substances are crucial for optimal function.​ By preventing hydrocarbon pollution in water bodies, light liquid separators contribute to preserving water quality and safeguarding aquatic ecosystems.​

ACO Stormsed Vortex

  • Wide range of flow rates
  • Designed for 80% TSS removal of 75-micron particles at high treatment flow rates
  • Compact treatment solution with low footprint
  • Patented design
  • Easy maintenance
  • Inner parts are made of high-density polyethylene (HDPE)
  • Possibility of various outlet angles 90°–180° (optional)
Product description

ACO Stormsed Vortex enables sedimentation through hydrodynamic or vortex separation. Designed according to NJDEP specifications, the patented solution can remove up to 80% of pollutants and capture 100% of floatables. The unique design of ACO Stormsed Vortex separates high flows from captured sediment, allowing it to treat a wide range of flow rates from sites of less than 1,000 sqm to over 20,000 sqm depending on the country of specification.

Its small footprint requires less excavation during installation, and variable connection outlet angles are available. Vortex flow allows Stormsed Vortex to operate at high treatment flow rates without the hydraulic shortcutting or sediment remobilisation issues found in other sedimentation technologies, making it perfect for high flow applications!

ACO Stormclean G

  • official third party tested removal efficiencies for TSS, heavy metals and hydro carbons
  • compact design with small footprint
  • easy maintenance and service: quick access to sump; loose filter bed; all part can be demounted
  • scalable with many shaft sizes/connectable areas available
  • only 25cn pressure drop (level difference inlet to outlet) allowing flat installations
Product description

ACO presents the ACO Stormclean stormwater filter as a compact solution to advanced stormwater treatment needs. Due to its small footprint, it is an attractive alternative to large above ground soil filters when space is at a premium. ACO Stormclean combines four crucial processes – sedimentation, filtration, adsorption, and precipitation – to ensure bound and dissolved pollutant are removed from stormwater.

ACO Q-brake Vortex

  • Constant-flow control system in the PE manhole
  • Flow rate 0.1 - 30 l/s
  • Float switch regulates a constant and fill-level dependent flow rate, thus approx. 15 - 20% of the storage capacity can be saved
Product description

ACO Q-brake Vortex is a vertical vortex flow regulator for rainwater. It is less prone to blockages than, for example, choke valves and allows for greater flows at lower water column pressures by installing a constriction at the outlet with a cross-section 4 to 6 times smaller. It ensures predictable flow control performance, activates automatically, minimizing the risk of blockages. It reduces the need for maintenance, eliminates direct human access, and is easy to install. It fits many types of manholes, is durable and corrosion-resistant, individually tailored to specific performance needs.
