A reliable stainless steel drainpipe solution

  • Straight pipes
  • Bends
  • Branches
  • Couplings
  • Inspection parts
  • Socket clamps
  • Accessories
Product description

ACO Pipe® is a reliable, lightweight, and durable system of cupped pipes designed, manufactured, and tested for the purpose of draining sewage, rainwater, and industrial wastewater. Together with other ACO products, it forms an excellent drainage system that provides customers with exceptional benefits over the long term. This comprehensive drainage solution allows for the integration of ACO stainless steel drains and channels with grease separators or pumping stations. The cupped joint ensures quick and easy installation, saving time and money.

ACO hygienic gully

  • Adjustable EasyFix leveling feet
  • Certified according to EN 1253-1
  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Wide range of gratings for various load classes including slip resistant solutions
  • Certified fire protective solution available for classes EI 90 – EI 180 (EN 13 501-2)
  • Silt basket available as accessory
Product description

ACO hygienic drainage fulfills stringent hygienic requirements to prevent harmful bacterial contamination. We apply the relevant hygienic design principles reserved for food contact surfaces EN 1672, EN ISO 14159, EHEDG document to the channel design.

ACO’s hygienically designed gully is ideally suited for use in areas such as food preparation and cleaning, where frequent cleaning is required and where high-temperature water or water which contains fats, oils or grease may be present.

ACO hygienic box channel

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Certified according to EN 1253-1
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Outlet diameter 125, 142 or 200 mm
  • V-shape bottom for width up to 300 mm, reinforced bottom for width above and including 400 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
  • Silt basket available as accessory
Product description

ACO hygienic drainage fulfills stringent hygienic requirements to prevent harmful bacterial contamination. We apply the relevant hygienic design principles reserved for food contact surfaces EN 1672, EN ISO 14159, EHEDG document to the channel design.

The ACO box channel range includes channels for all common applications and all common floor types (concrete, tiles, resin or vinyl).

The ACO box channel portfolio is designed with respect to hygienic design requirements. The unique variability of the whole portfolio makes it easy to choose a channel that suits a customer’s specific needs.

ACO Kerb

Product description

Made entirely from polymer concrete composite, it is water proof and durable to withstand impacts caused by traffic. The portfolio offers two versions, one for later application of resin floor straight onto the kerb, and one for smooth gelcoat. It can accommodate for complex room design and its length can be easily adjusted if needed.

Modular 125, 200 open channels in stainless steel

  • Cost and time effective solution
  • Fast delivery
  • Customisable length
  • EN certification
Product description

Linear drainage systems, particularly the modular ACO systems, are the perfect solution for draining large surfaces. The diverse range of components allows for the creation of intricate linear drainage shapes.

Regarding trench drains: the system offers two widths – 125 mm and 200 mm. Even with such narrow widths, the system can effectively handle high water flow rates. Grates are placed along the entire length of the channel, and a wide range of grate types is available, allowing for selection based on load class and aesthetic preferences

ACO modular slot channel

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Fully compliant to EN 1253
  • Fully tested and classified to EN 1433
Product description

Linear drainage systems, especially the modular ACO systems, provide an ideal solution for draining large surfaces. The extensive variety of components allows for the creation of complex linear drainage shapes.

Regarding trench drains: the system offers two widths – 125 mm and 200 mm. Despite the narrow widths, the system can effectively manage high water flow rates. Grates are placed along the entire length of the channel. A wide range of grate types is available, enabling selection based on not only load class but also aesthetics.

References

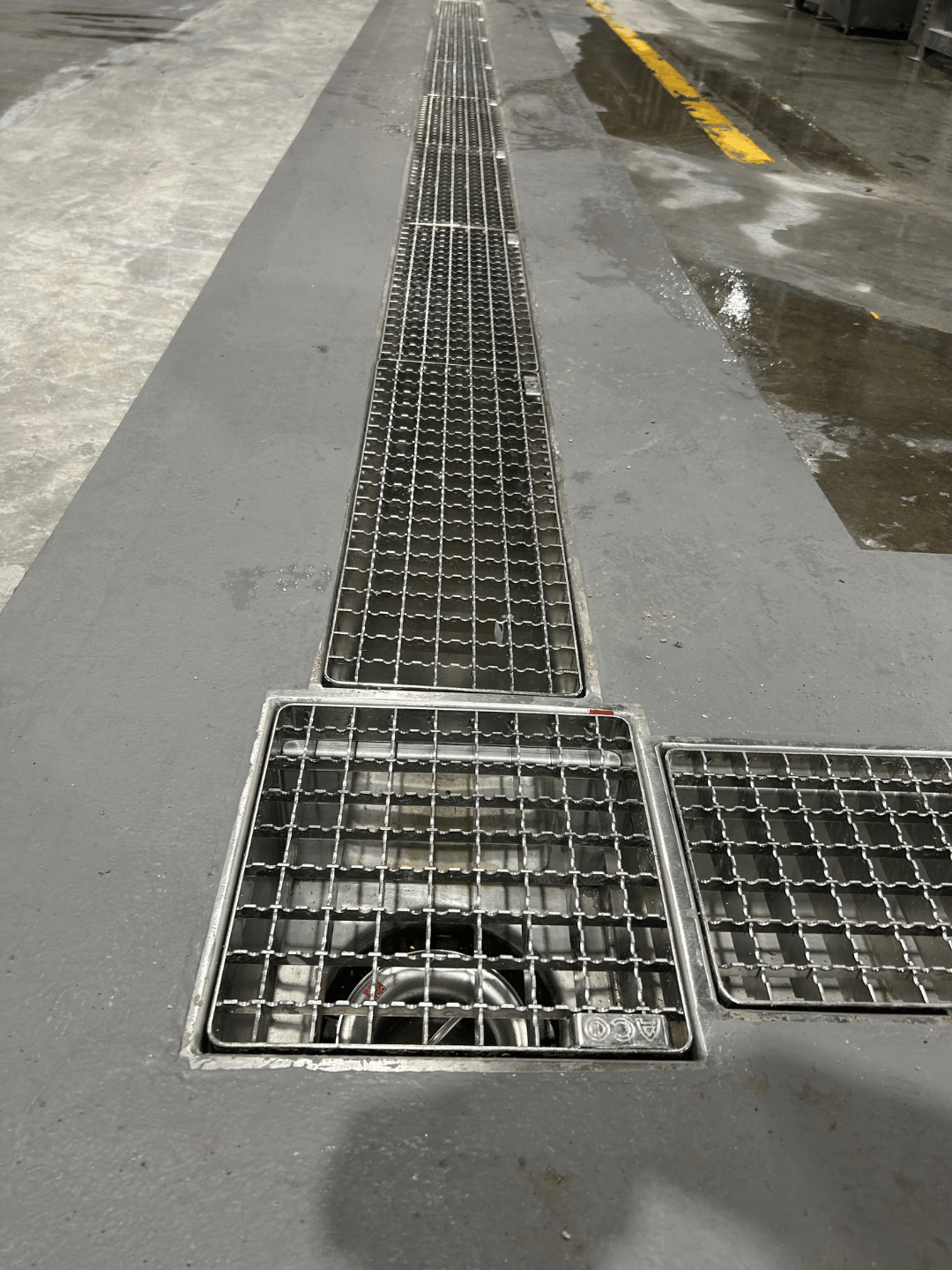

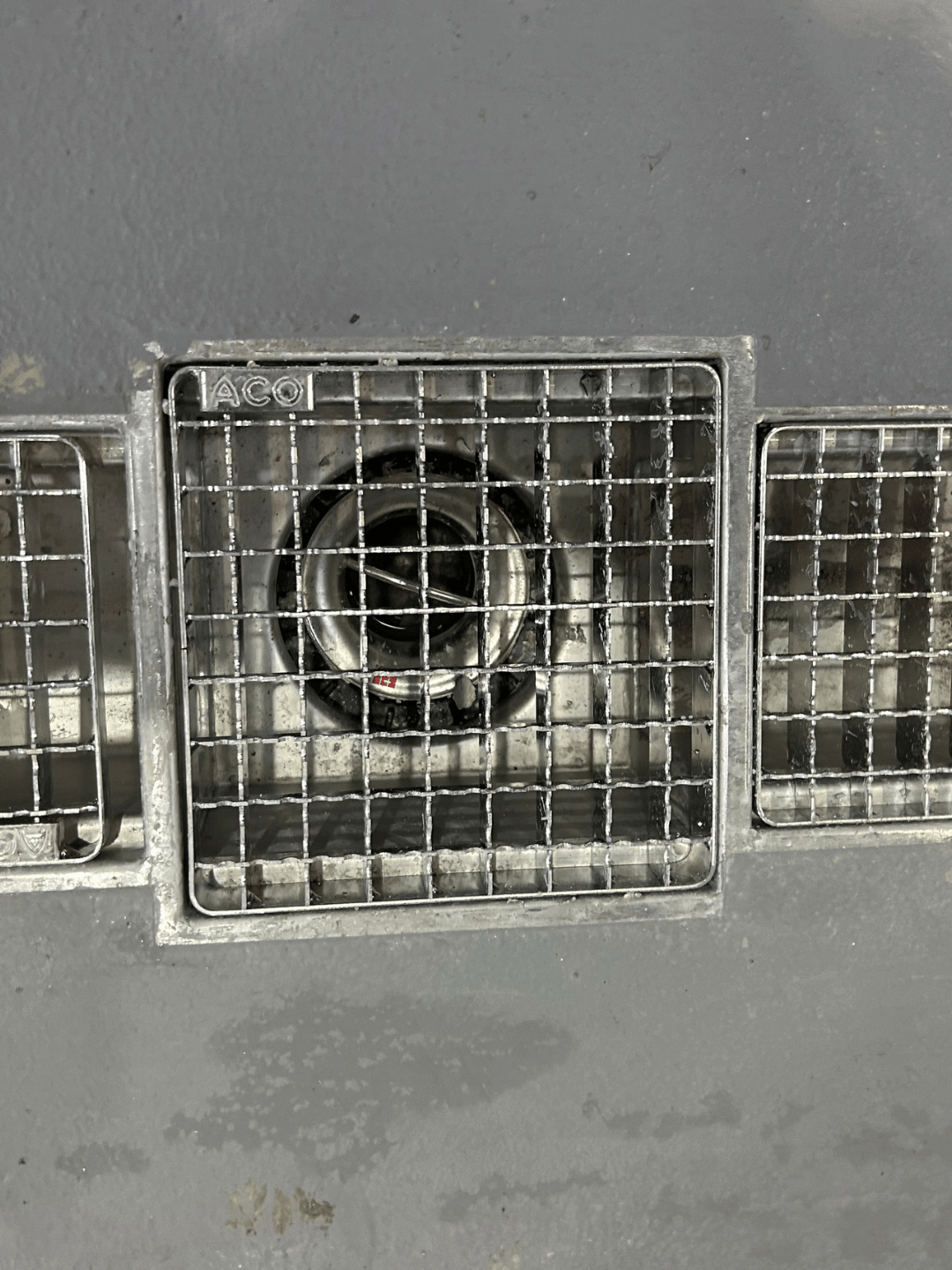

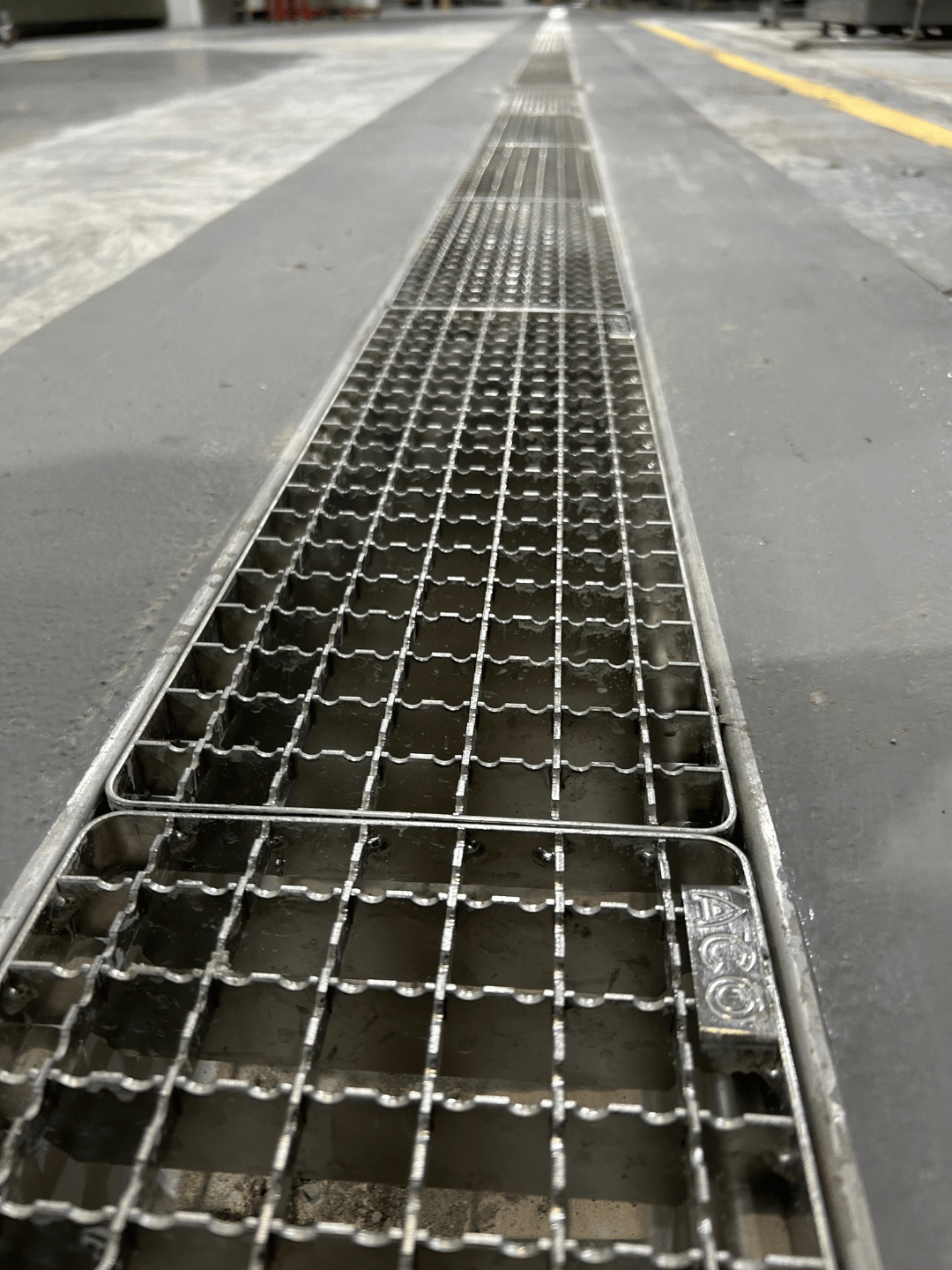

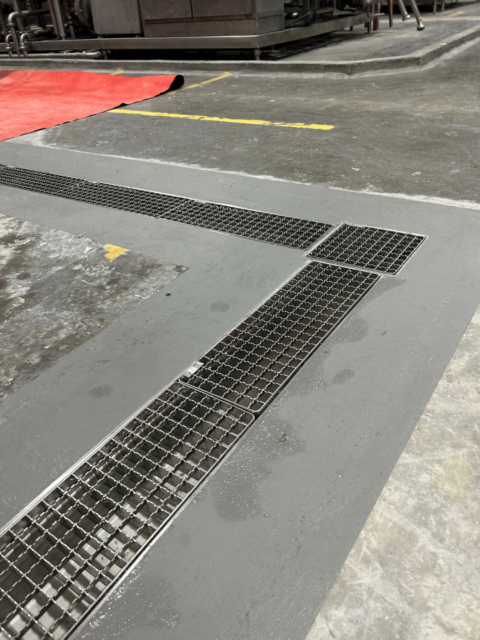

JDE Inside Plant, SFI & SFS Building, Malaysia

JDE is a subsidiary of JDE Peet’s, the world’s largest pure-play coffee and tea company, based in the Netherlands. For over 265 years, JDE has been motivated by the notion that it’s astonishing what can happen over a cup of coffee. JDE now expands the possibilities of coffee and tea in more than a hundred nations through a portfolio of over 50 brands, including L’OR, Jacobs, Senseo, Tassimo, Douwe Egberts, OldTown, Super, Pickwick, and Moccona.

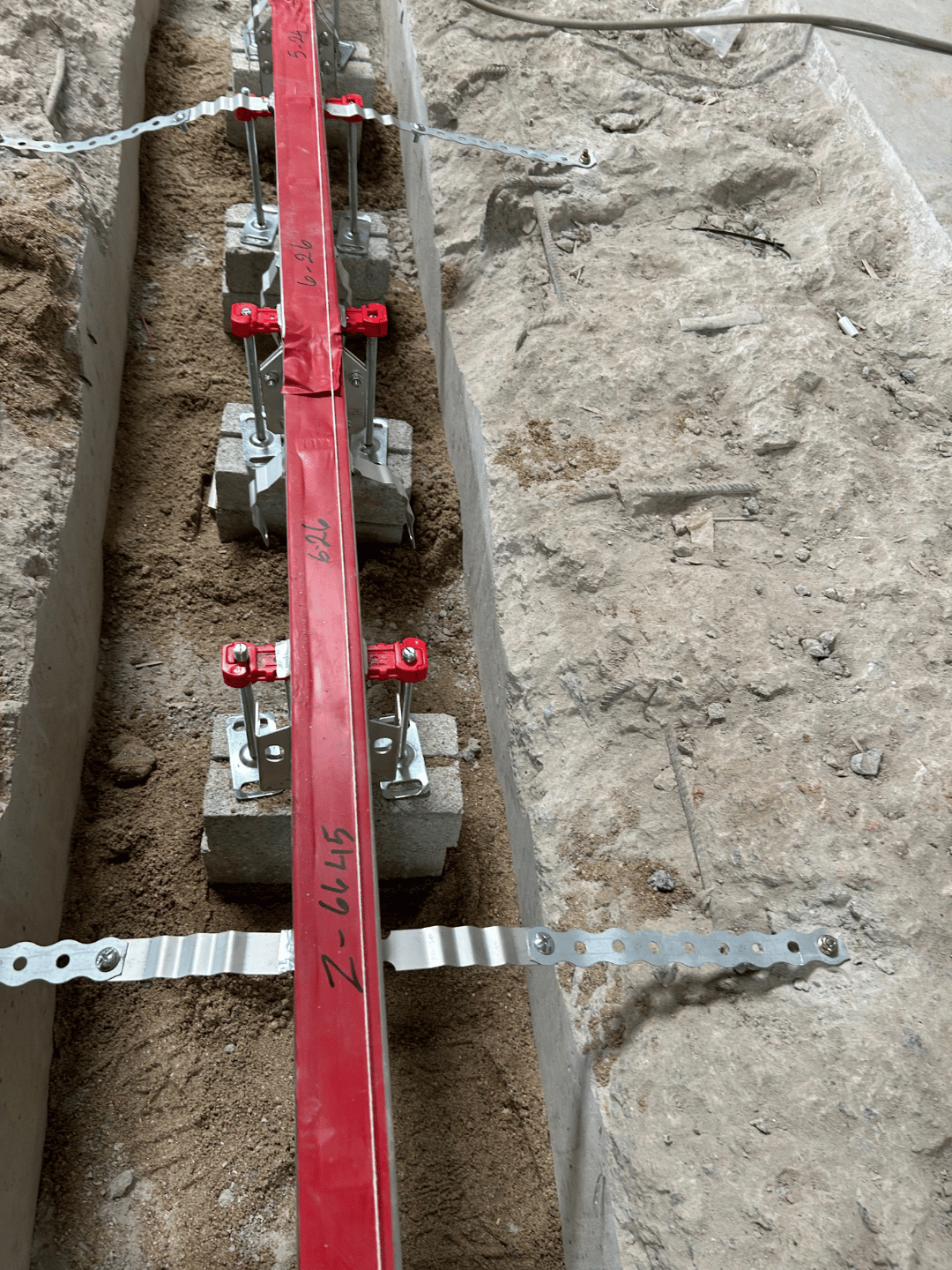

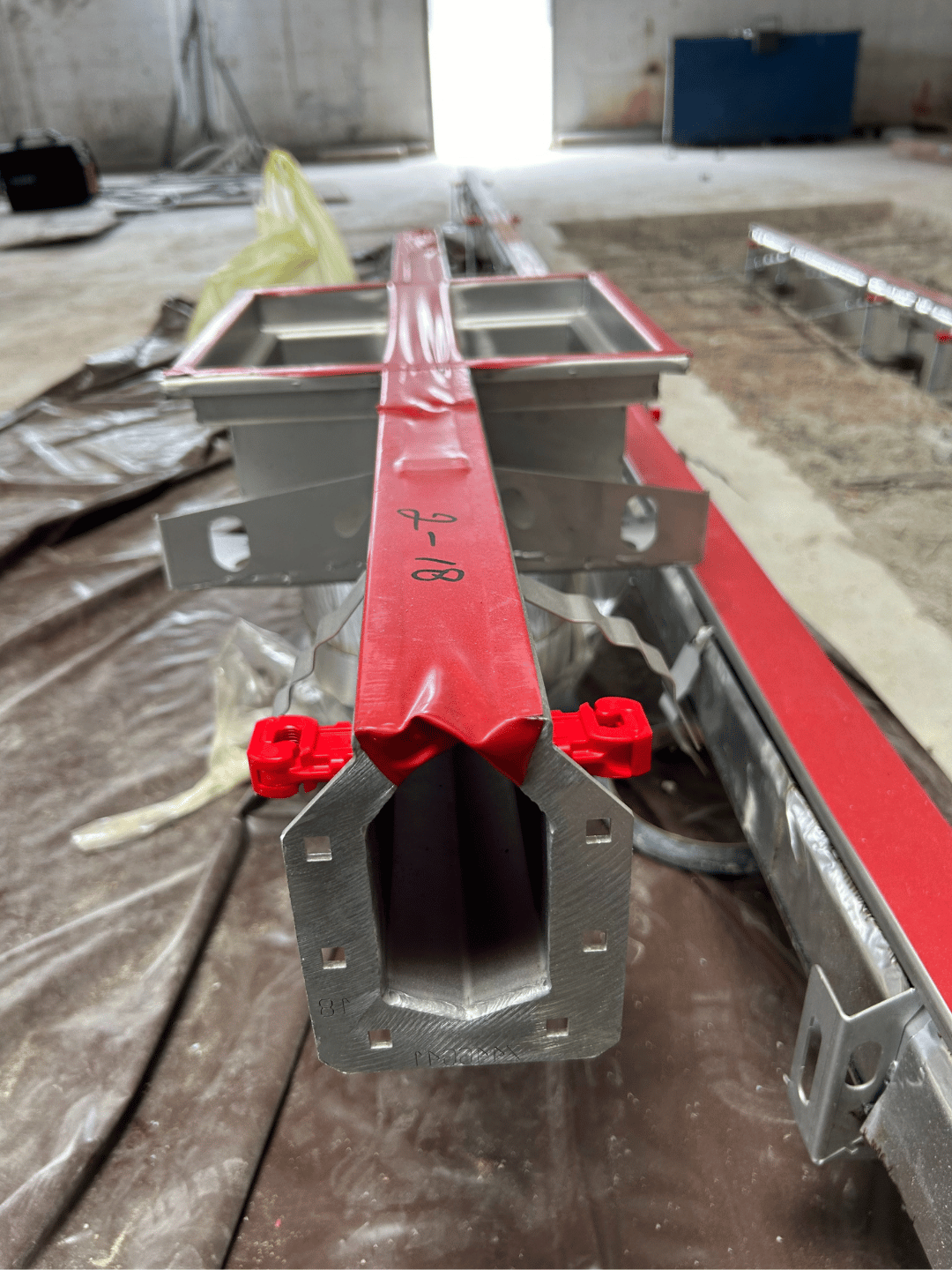

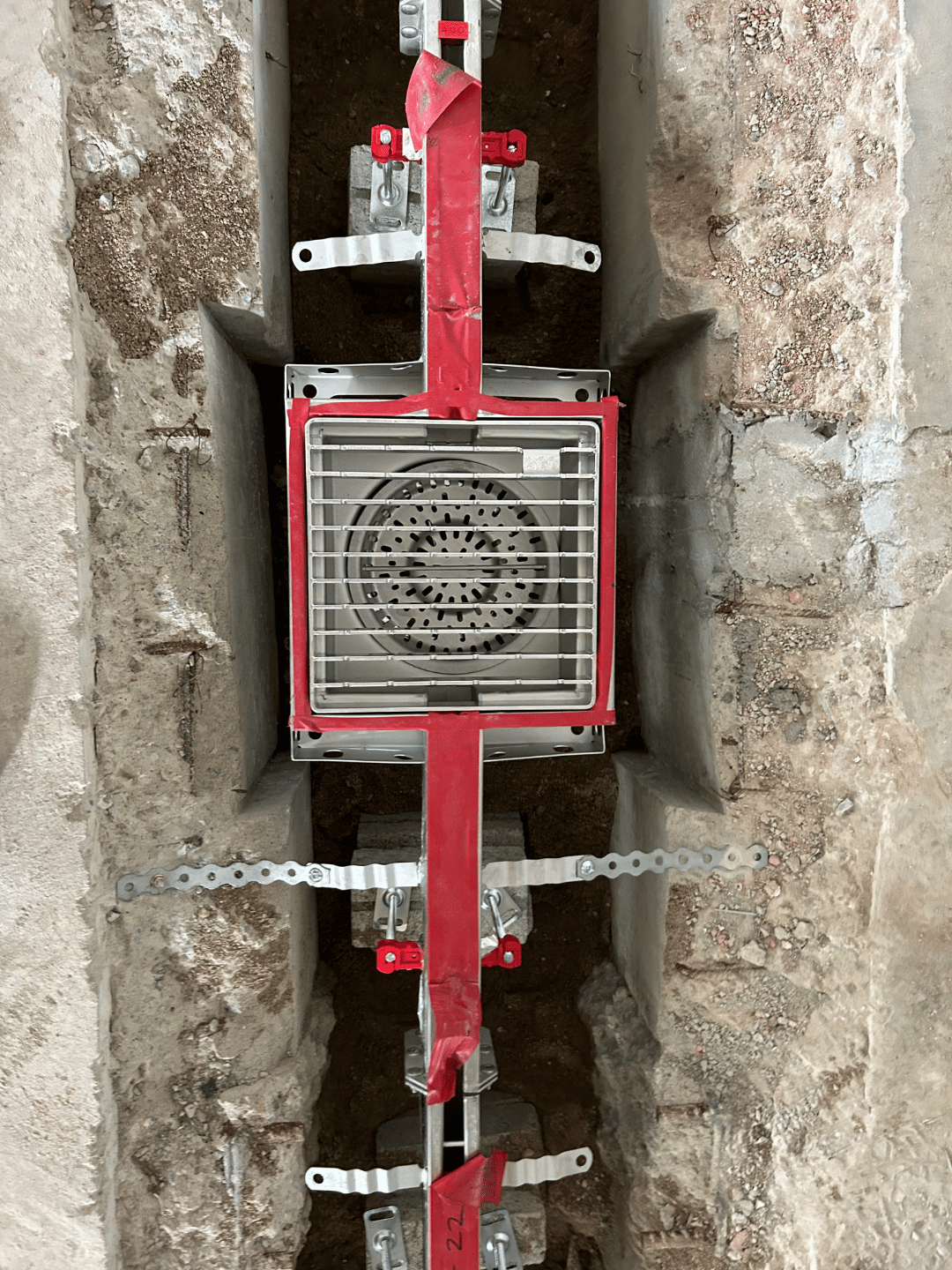

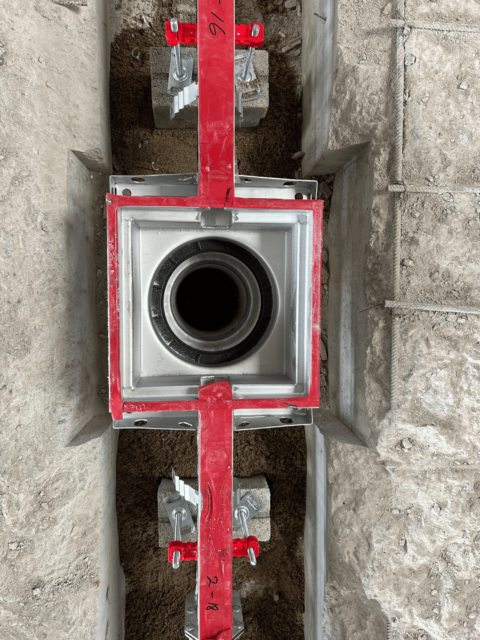

Mafipro, Malaysia

Mafipro Sdn. Bhd. is a prominent Malaysian canned food manufacturer, specializing in seafood products such as tuna, sardines, and mackerel. Established in 1971, the company operates from its facility in Kamunting, Perak, and is a subsidiary of the Denis Frères Group, a multinational leader in the canned food industry .

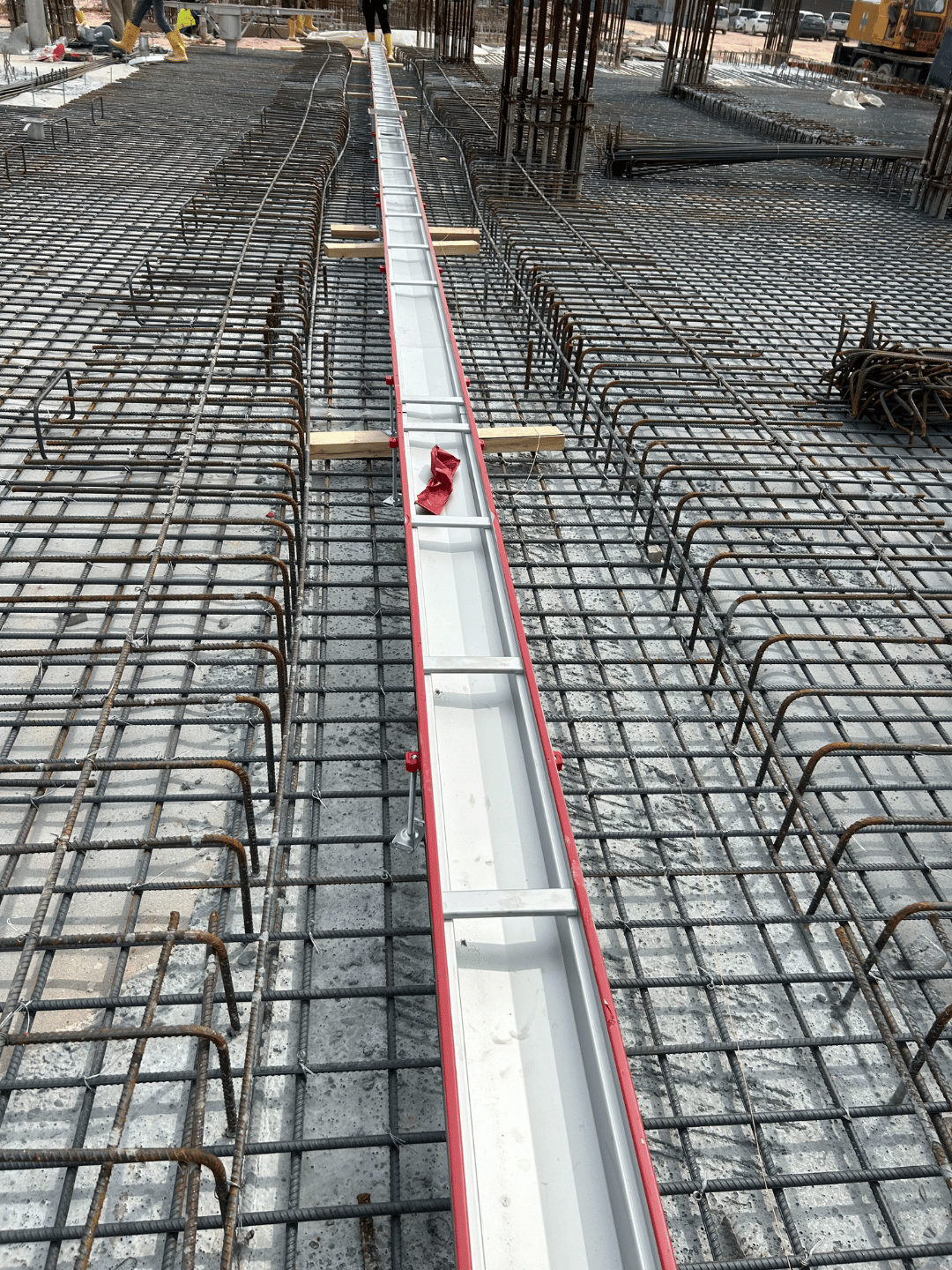

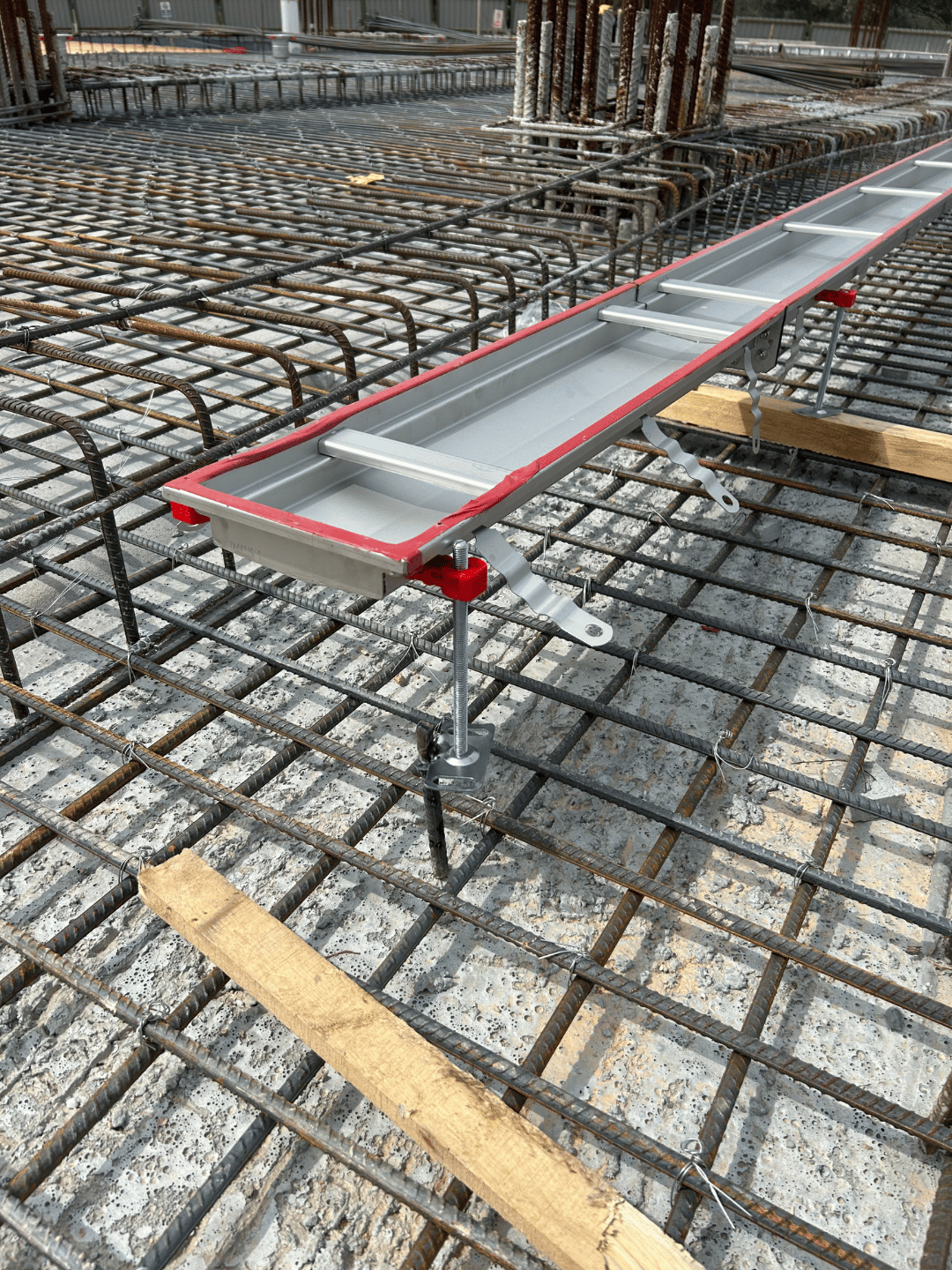

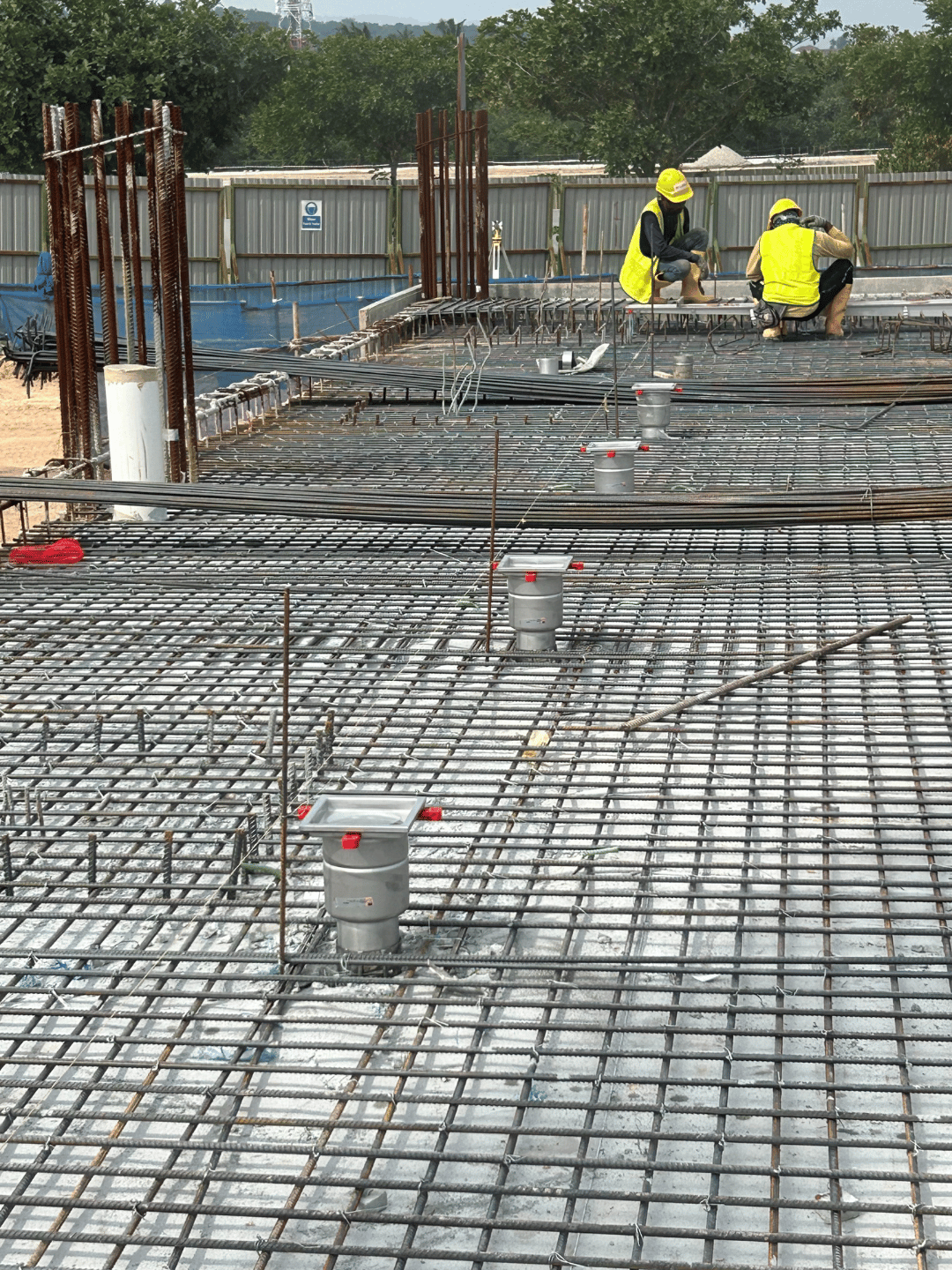

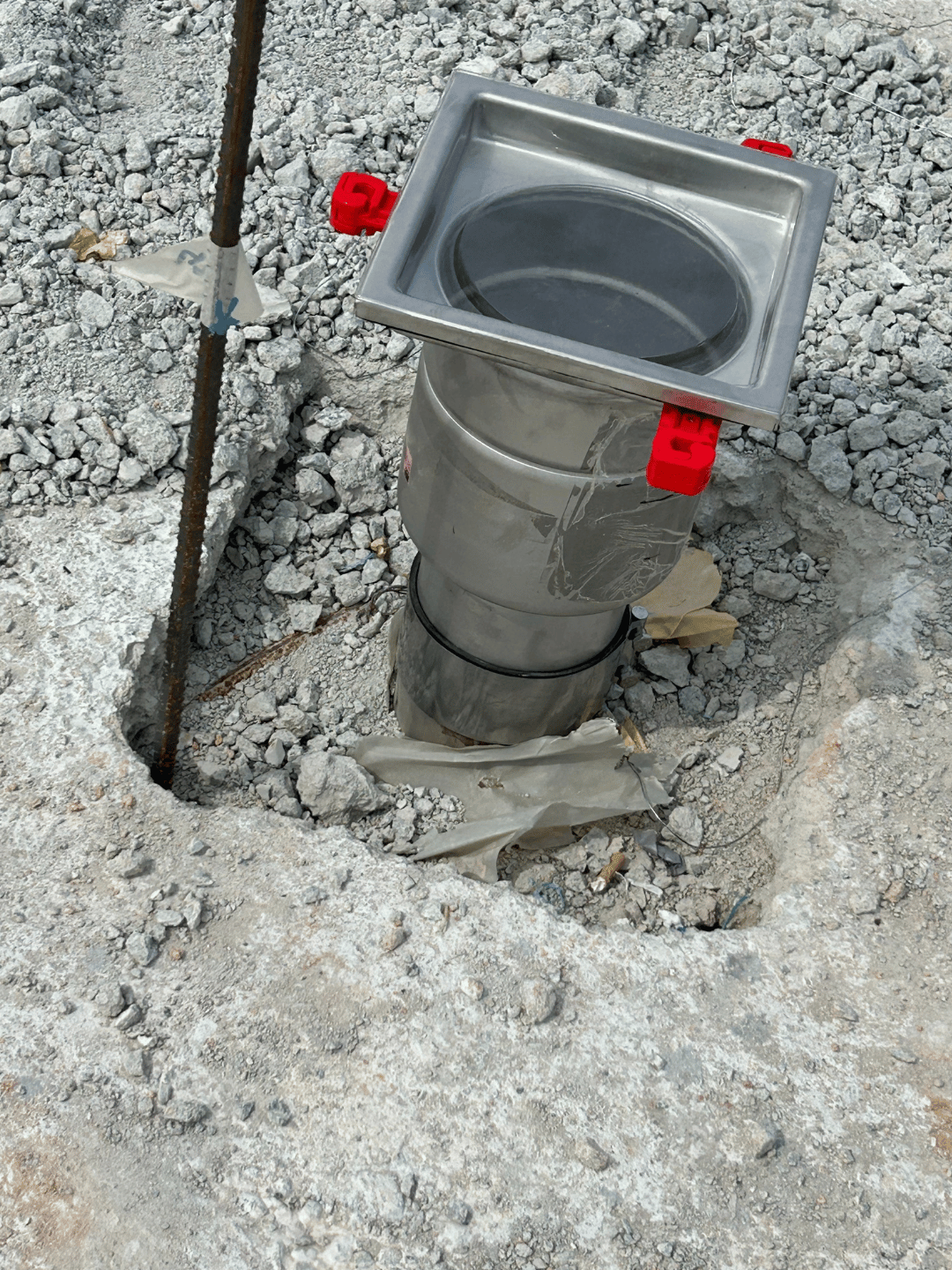

Mahsuri, Malaysia

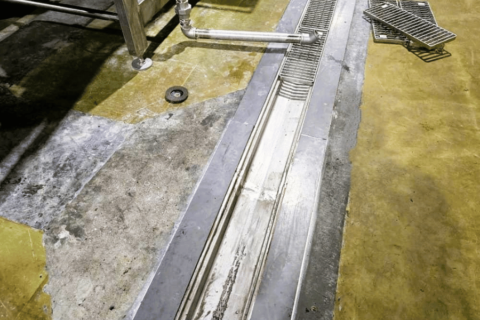

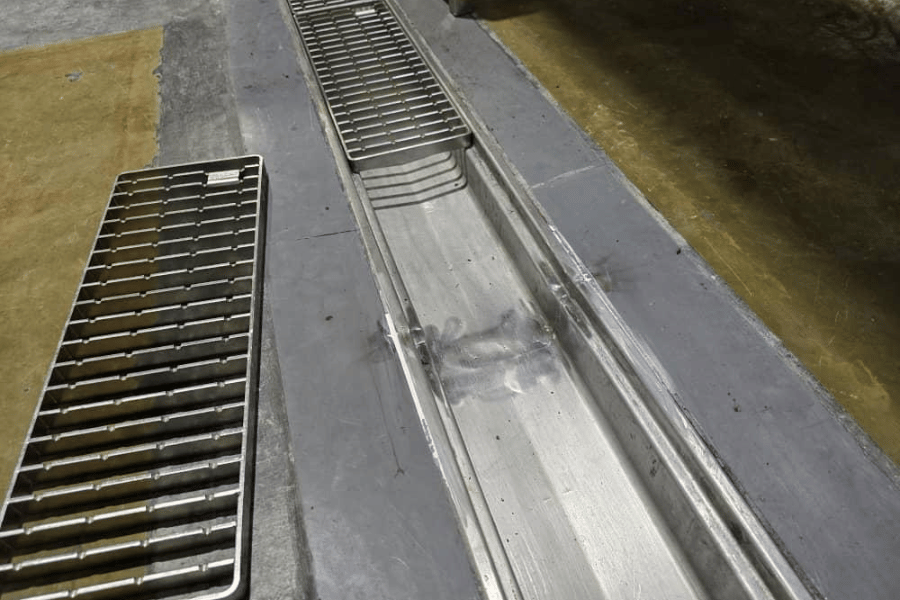

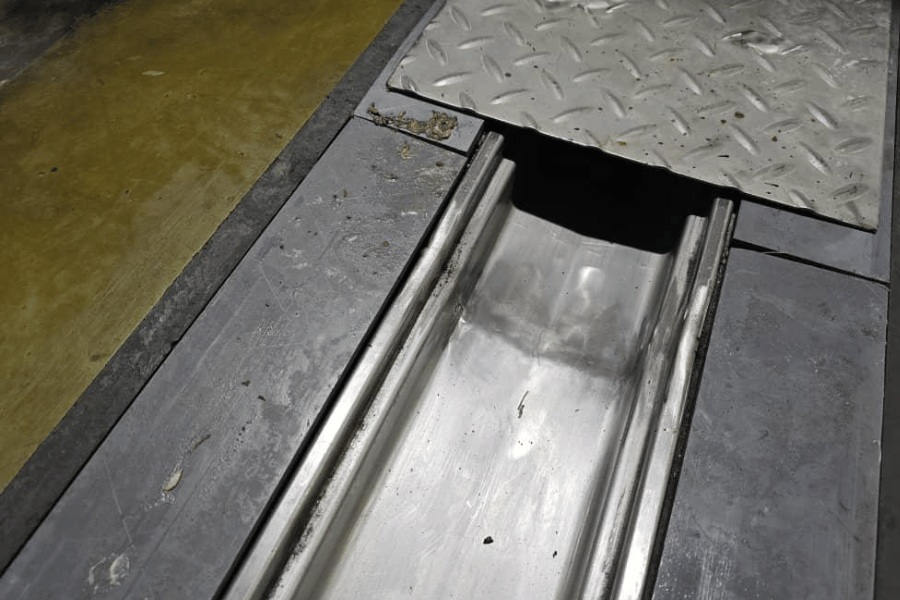

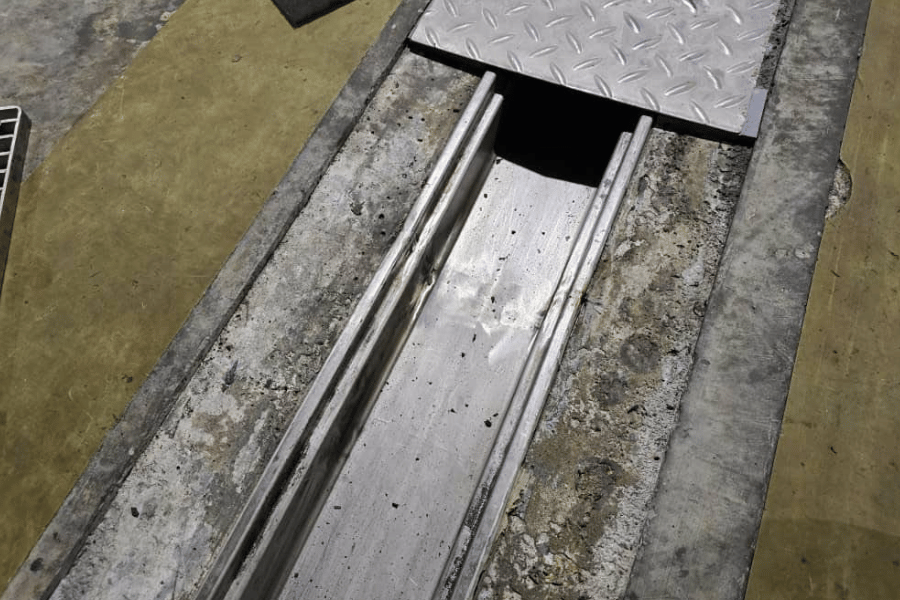

Mamee, Malaysia
