ACO S500 Drain

  • Cast Iron flat grating, secured with 8 bolts per meter
  • Open-thread cavity design prevents bolt holes from clogging
  • Male-female joint connection facilitates installation and enhances drainage sealing performance
  • Large flow cross sections
  • D400 load class (EN 1433)
  • Suitable for heavy vehicle loads and high-traffic areas
Product description

ACO S Range is a channel drainage system designed to provide efficient removal of surface water in heavy duty applications.

Manufactured from ACO’s high strength polymer concrete, ACO S Range is tough channel drainage system with excellent chemical resistance. Integral cast iron edge rails provide maximum protection for the channel body.

The S Range system is available in four widths, 100mm, 150mm, 200mm and 300mm has constant and sloping depths channels for optimum performance and system design.

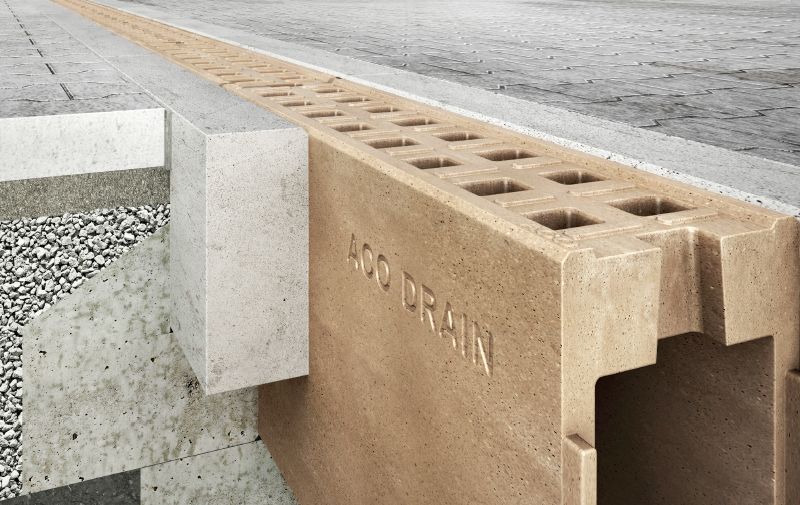

ACO Drain® Monoblock

  • Channel body without invert slope, 1000 mm
  • Inspection element, 500 mm
  • Sump unit, 500 mm
Product description

ACO Monoblock is a drainage system in a monolithic design: channel and cover are made of polymer concrete in one casting. The result is an extremely stable unit without loose parts, there is also no need for bonded joints. The unique monocast construction is a guarantee for maximum safety and stability in large-scale drainage – an ideal alternative to conventional solutions. Due to its monolithic design, the Monoblock always remains stable even under extreme loads.

ACO Drain® S300K with iron grate.

  • material: polymer concrete
  • length [mm]: 1000
  • width [mm]: 260
  • height [mm]: 330
Product description

Linear drainage designed for special tasks – for heavy traffic areas in industrial plants, gas stations, and fuel depots. Made of polymer concrete with cast iron edges. Secured with a longitudinal sliding bar Powerlock® – a screwless grating mounting system. Load class D 400 or F 900.

ACO Light Oil Separator | Oleopator GRP

Product description

Light liquid separators, also known as oils separators, ​ are essential devices designed to remove oils and hydrocarbons from water prior to discharge.​

ACO light liquid separators are designed and constructed in compliance with EN 858 standards and undergo rigorous LGA institute laboratory testing. This ensures maximum safety and efficiency during their operations.​ Lighter oils rise to the surface while solids settle, allowing clean water to exit. They find use in industrial, parking, ​and refueling facilities, ensuring compliance with environmental regulations.​ Regular maintenance and disposal of collected substances are crucial for optimal function.​ By preventing hydrocarbon pollution in water bodies, light liquid separators contribute to preserving water quality and safeguarding aquatic ecosystems.​

ACO Stormsed Vortex

  • Wide range of flow rates
  • Designed for 80% TSS removal of 75-micron particles at high treatment flow rates
  • Compact treatment solution with low footprint
  • Patented design
  • Easy maintenance
  • Inner parts are made of high-density polyethylene (HDPE)
  • Possibility of various outlet angles 90°–180° (optional)
Product description

ACO Stormsed Vortex enables sedimentation through hydrodynamic or vortex separation. Designed according to NJDEP specifications, the patented solution can remove up to 80% of pollutants and capture 100% of floatables. The unique design of ACO Stormsed Vortex separates high flows from captured sediment, allowing it to treat a wide range of flow rates from sites of less than 1,000 sqm to over 20,000 sqm depending on the country of specification.

Its small footprint requires less excavation during installation, and variable connection outlet angles are available. Vortex flow allows Stormsed Vortex to operate at high treatment flow rates without the hydraulic shortcutting or sediment remobilisation issues found in other sedimentation technologies, making it perfect for high flow applications!

References

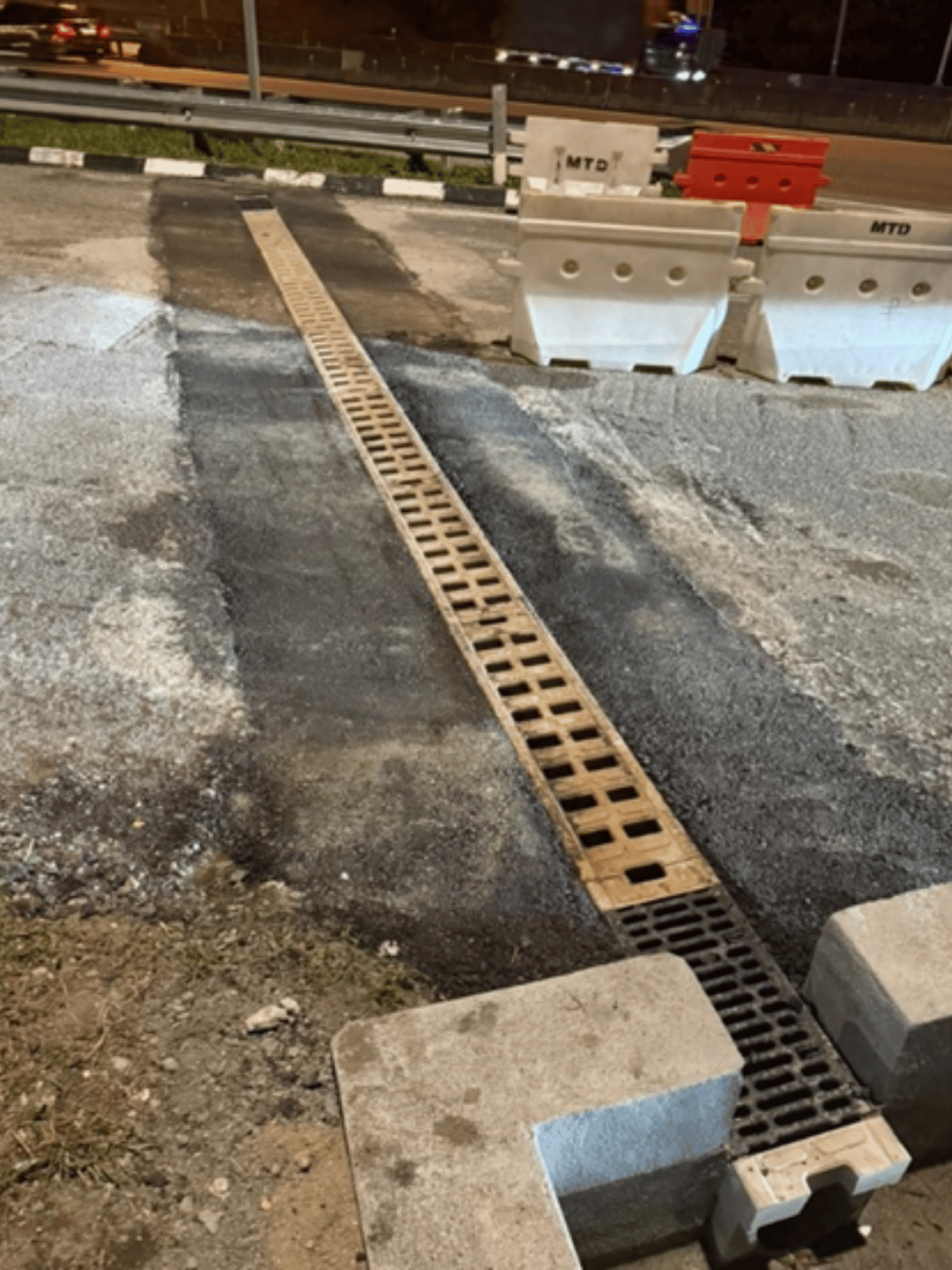

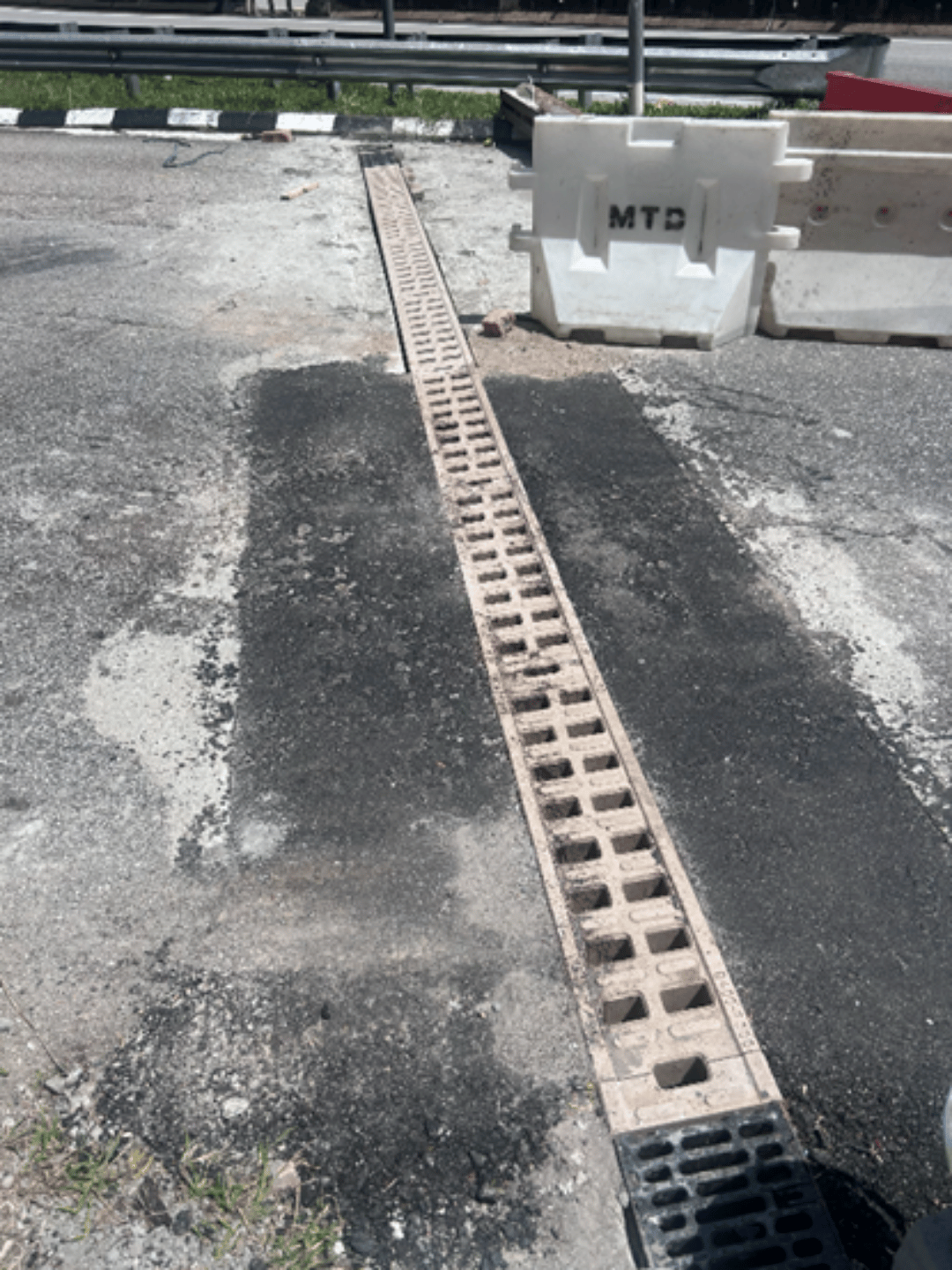

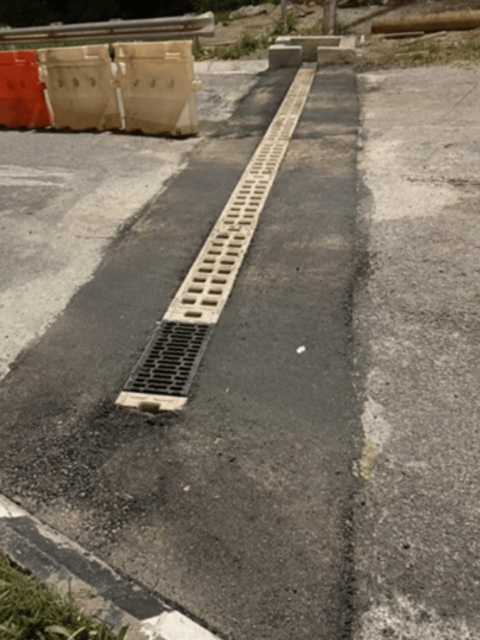

Karak Highway, Malaysia
